ZEISS ScanPort: Three-Axis Automated Metrology Solution
ZEISS ScanPort is a complete solution for three-axis automation with just one click. It is a mobile and flexible semi-automated system that delivers metrologically flawless data. Operated with ZEISS INSPECT, ZEISS ScanPort is your all-in-one solution to capture all details of small to medium-sized parts.
- Simple operations: Built for users who need metrology results they can trust—without the hassle of complex setups or extensive training.
- High repeatability and accuracy: Delivers short measurement times, even on complex or challenging surfaces.
- Flexible Solution: Compatible with ZEISS GOM Scan 1 and ATOS Q 3D scanners.
|
🗓 Instantly Book a Web Demo With Us
We can give you a personalized experience without ever leaving your desk. Demo time will be confirmed immediately after you submit your request. Book using our calendar.
|
Technical Specifications
- Light Source: Blue Light Technology
- Points Per Scan: Up to 12 million (Compatible with ATOS Q & GOM Scan 1)
- Scanning Volume: Up to diameter 500 x 300 mm³
- Rotation Table Diameter: 350 mm
- Point Distance: Up to 0.03 mm
- Payload: 20 kg
- Weight: approx. 22 kg (modular concept: heaviest part 11 kg)
- Packing Dimensions: 550 mm x 725mm x 180 mm
- Interface: USB 2.0
- Power: AC 100 ~ 240V, 50/60 Hz
- Operating System: Windows 11
- Software: ZEISS INSPECT
With features like kiosk mode, workflow assistants, and preconfigured templates, it is easy to navigate the 3D scanning process confidently with ScanPort. Step-by-step guidance standardizes operations, shortens training time, and helps reduce user errors.
What is ZEISS ScanPort?

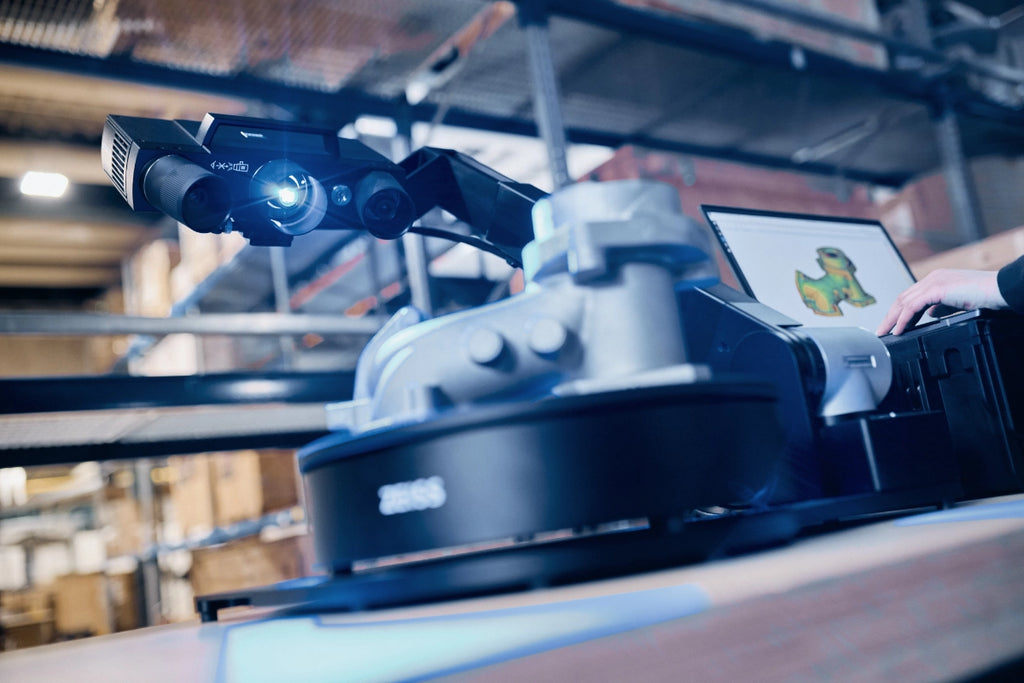

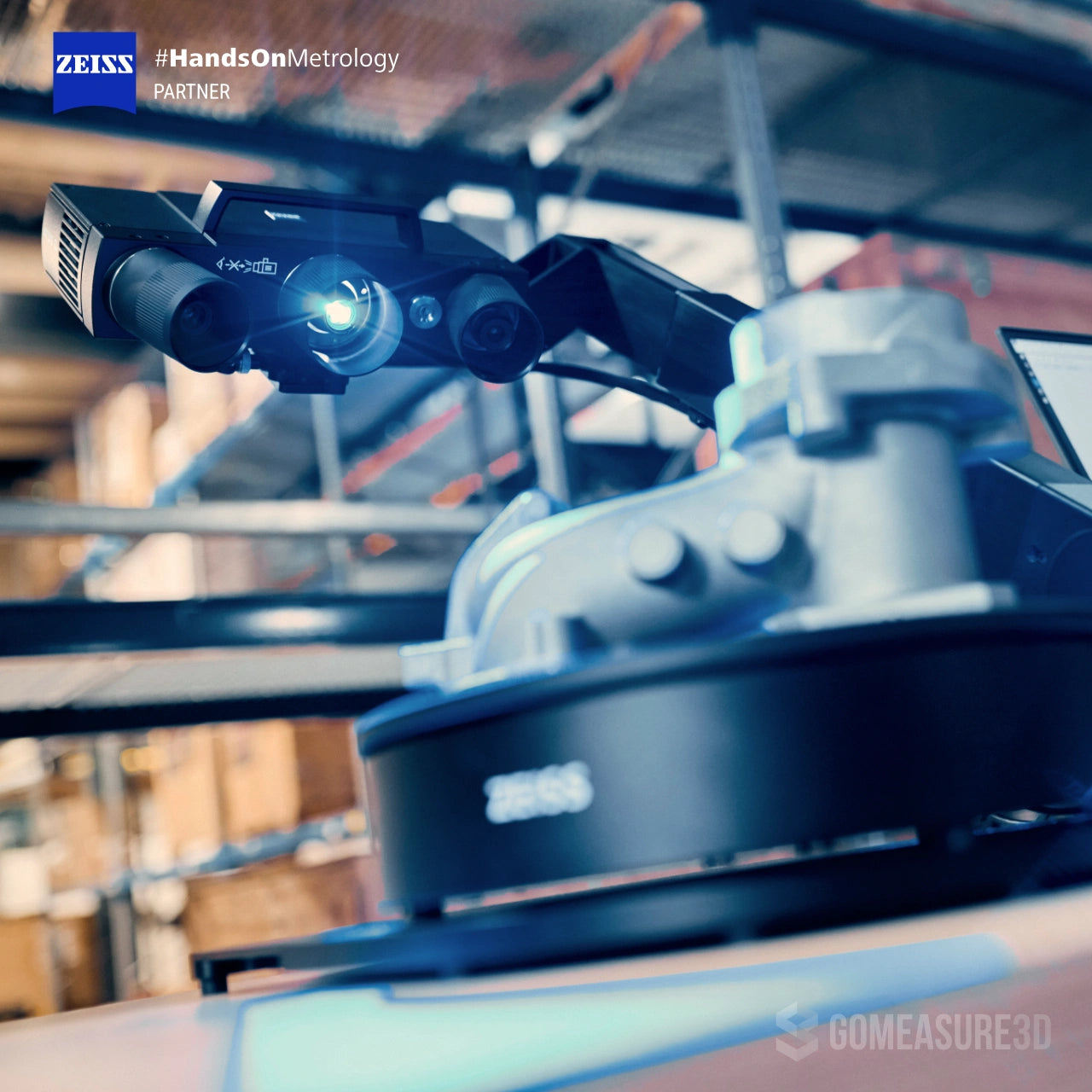

ZEISS ScanPort eliminates the guesswork in 3D metrology applications. This compact, mobile, three-axis automated 3D scanning solution is designed to deliver high-precision measurement data every time.

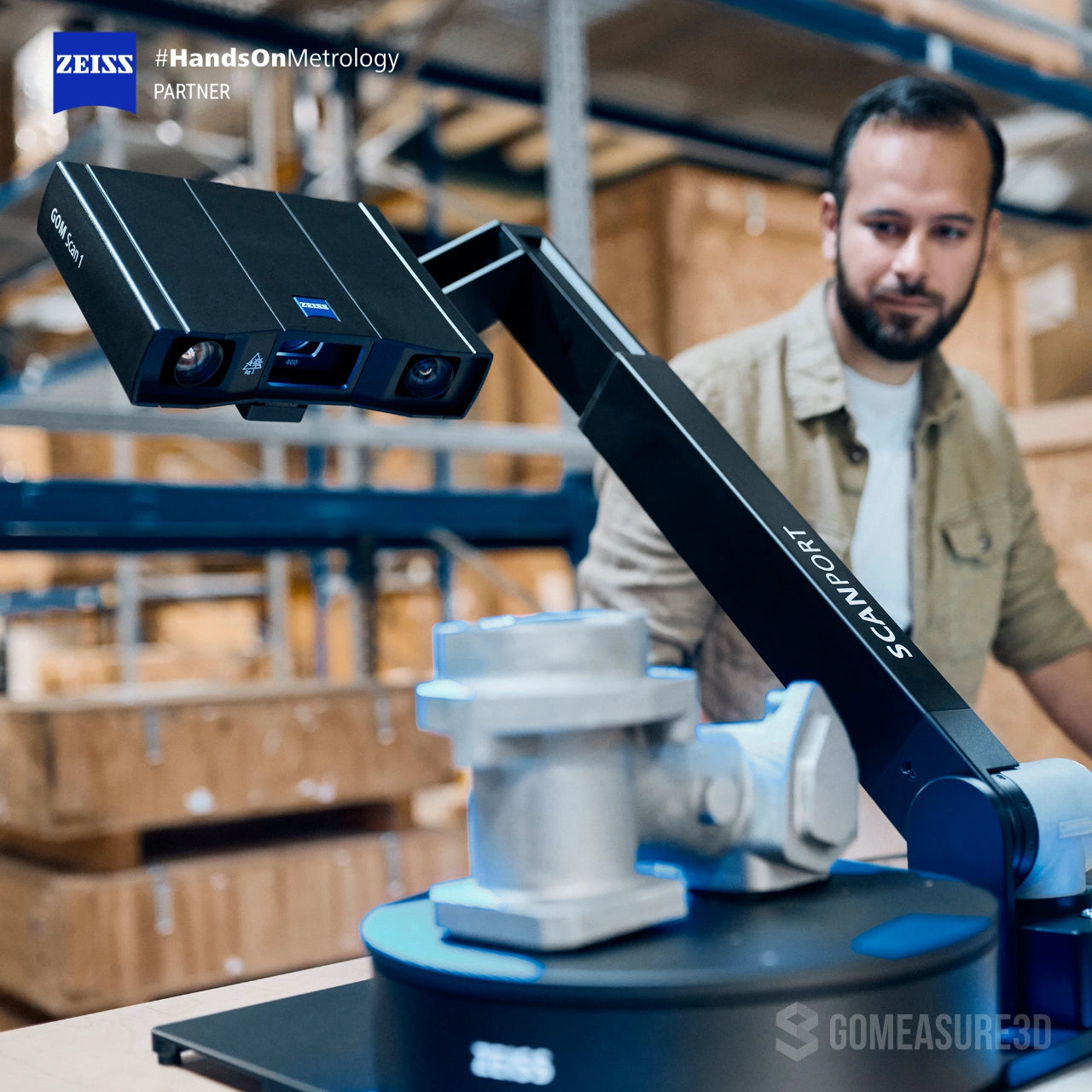

Compatible with ZEISS GOM Scan 1 and ATOS Q 3D scanners, its motorized rotation and tilt unit ensures consistent, high-quality data capture with less time and effort. It provides precise part positioning and supports repeatable scanning routines.
Compatibility
ZEISS ScanPort is compatible with ZEISS GOM Scan 1 and ATOS Q 3D scanners for metrology-grade inspection.

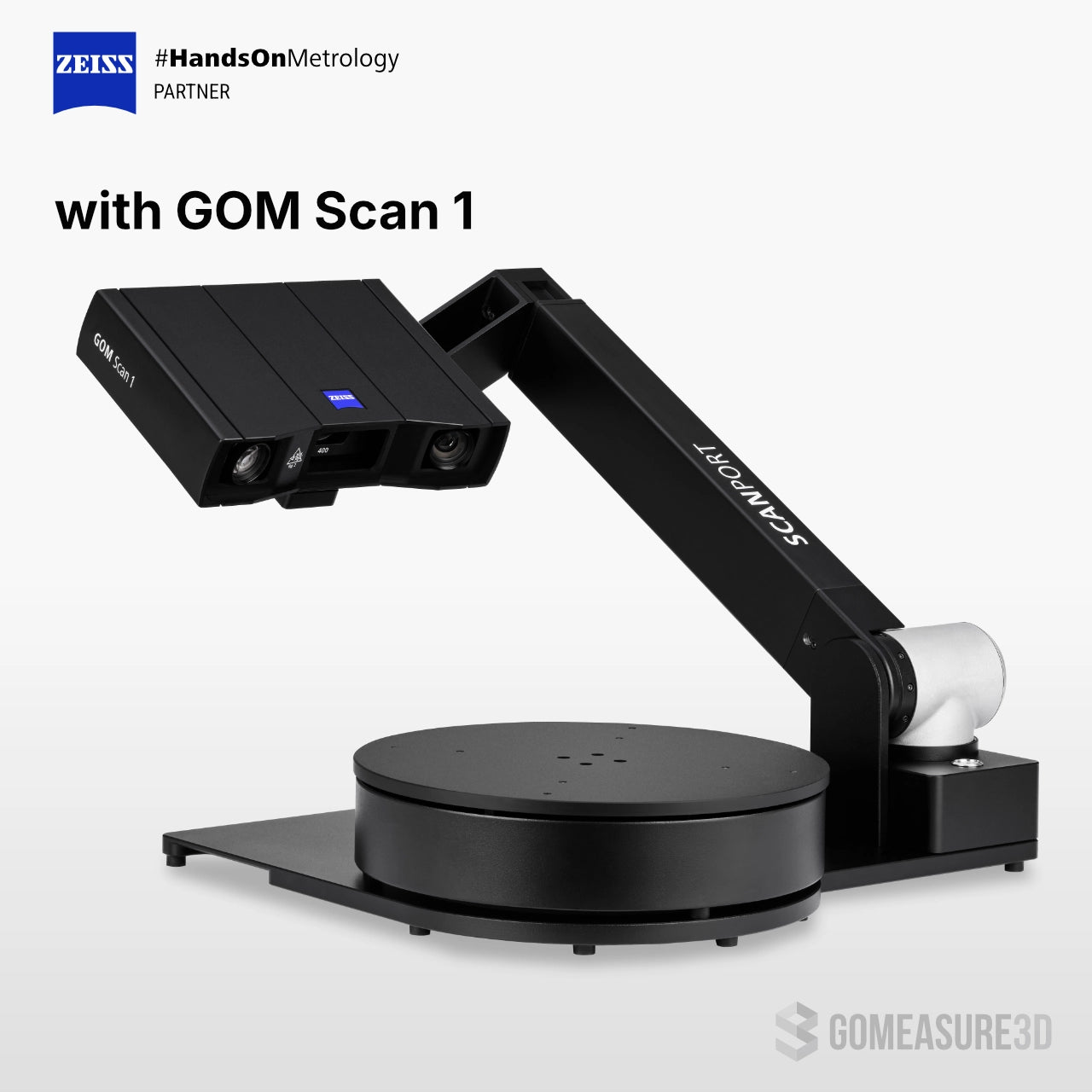

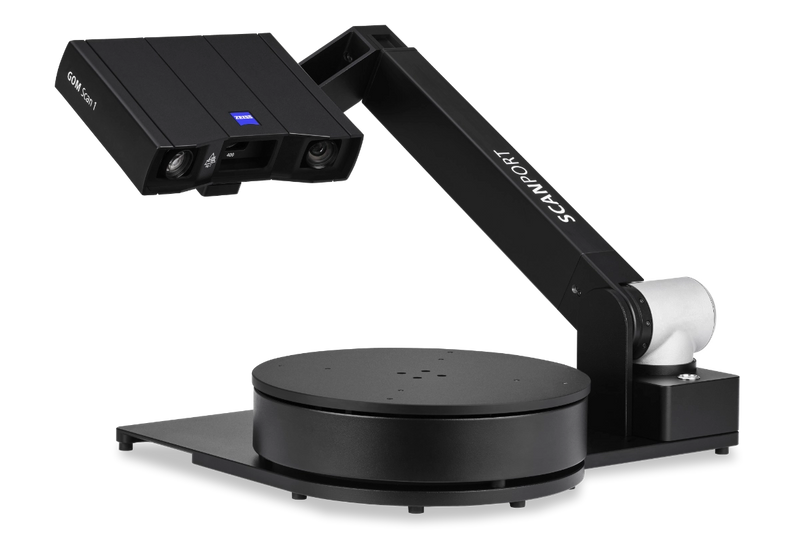

GOM Scan 1 3D Scanner

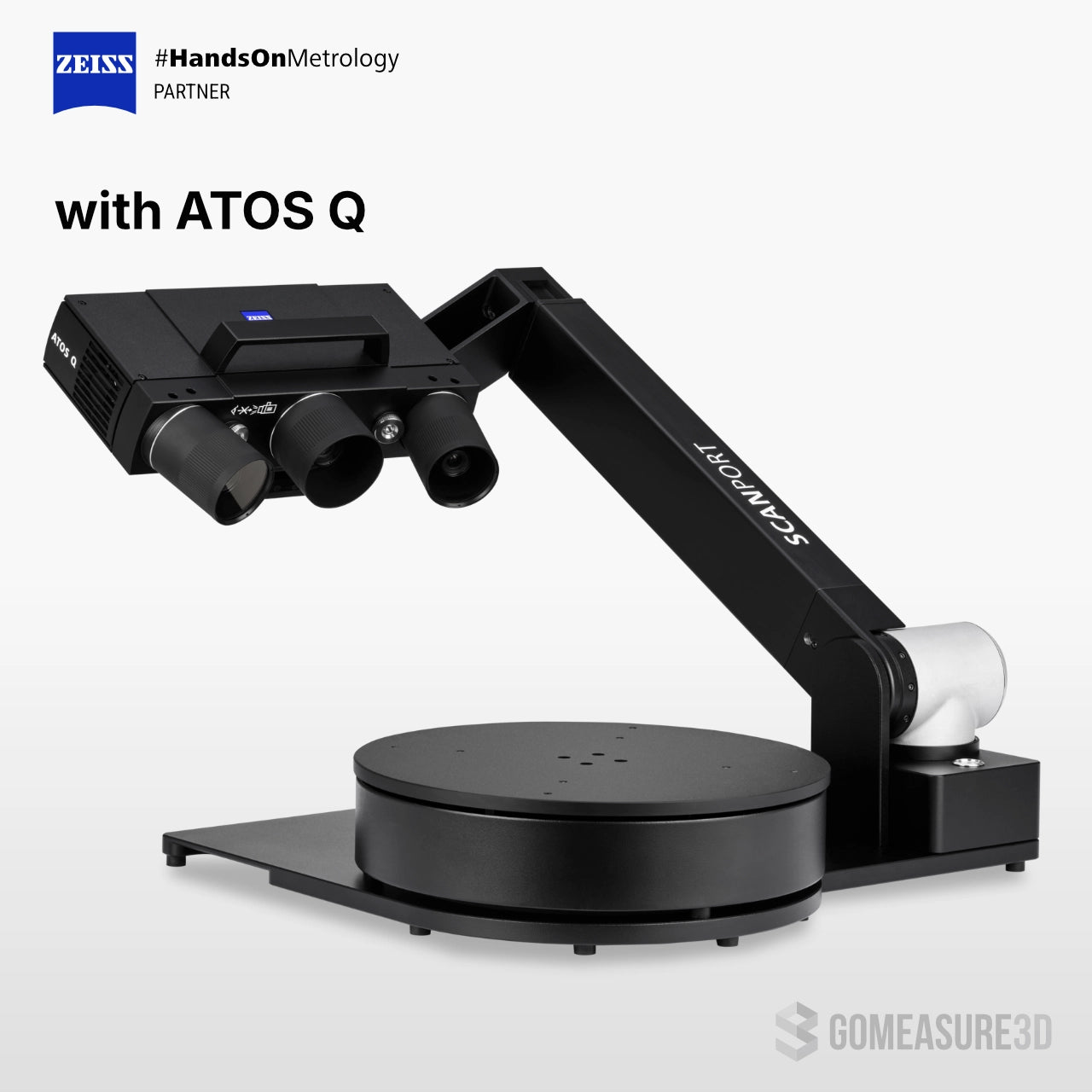

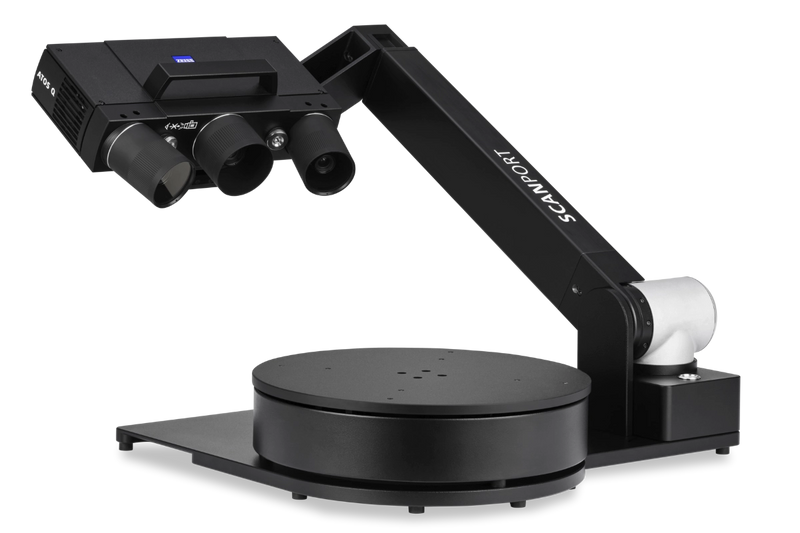

ATOS Q 3D Scanner
How ZEISS ScanPort Works
Choosing the Right Sensor for Automation
Not sure which sensor is the best fit for your ZEISS ScanPort? In this Getting Started video, we'll show you how to choose between the GOM Scan 1 and ATOS Q for the ScanPort, highlighting their core features and the technology that sets each sensor apart.
3D Scanning Your First Part

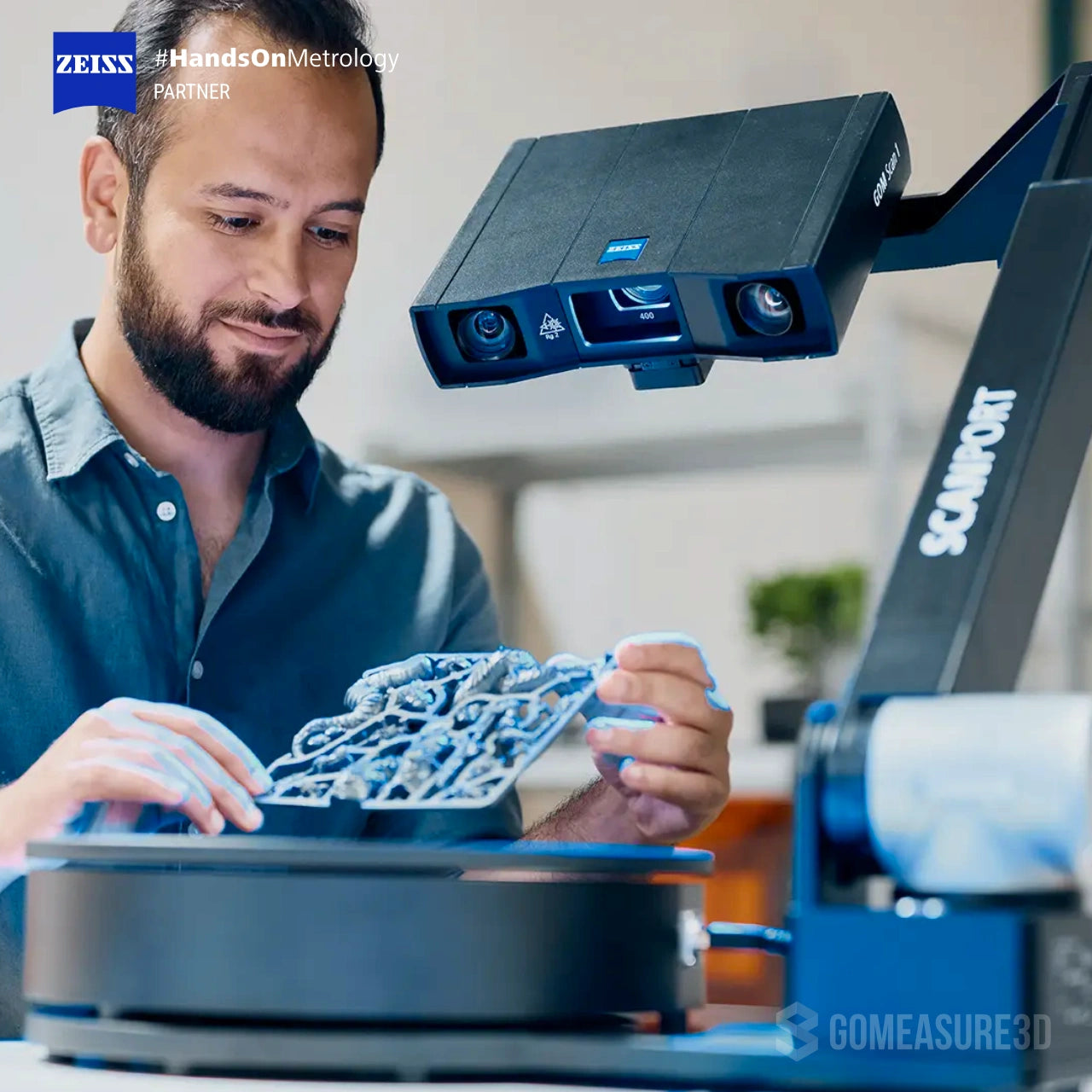

This video walks you through the entire 3D scanning workflow—from setup to generating a complete 3D mesh—using ZEISS ScanPort paired with the GOM Scan 1 3D scanner and ZEISS INSPECT software.
ZEISS ScanPort Highlights
Reproduce Your Scan in One Go

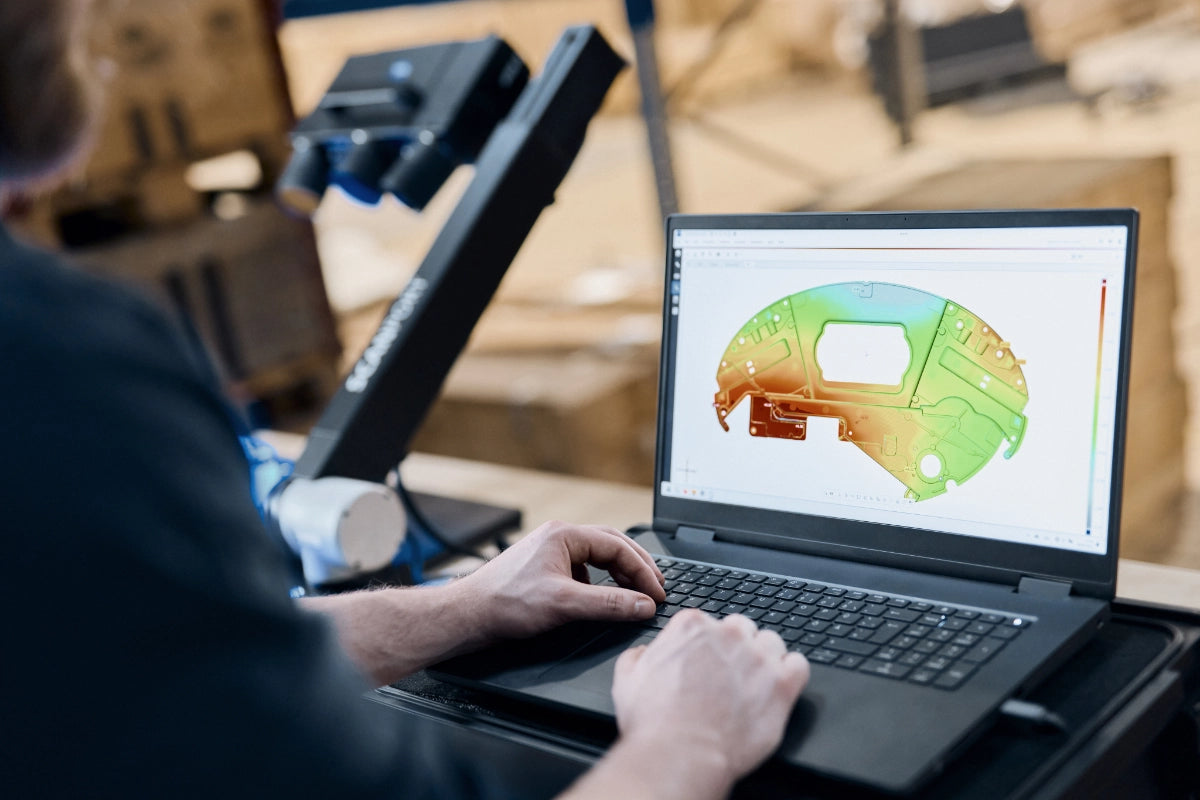

ZEISS ScanPort is ideal for repeated inspection of similar parts. Its motion replay feature automates the measurement process with just one click and updates inspections for each new part. You can also compare deviations across scans to quickly identify trends and variations.
Ideal for:
- High repeatability and accuracy
- Customizable template-based 3D scanning
3D Scanning Multiple Parts at Once

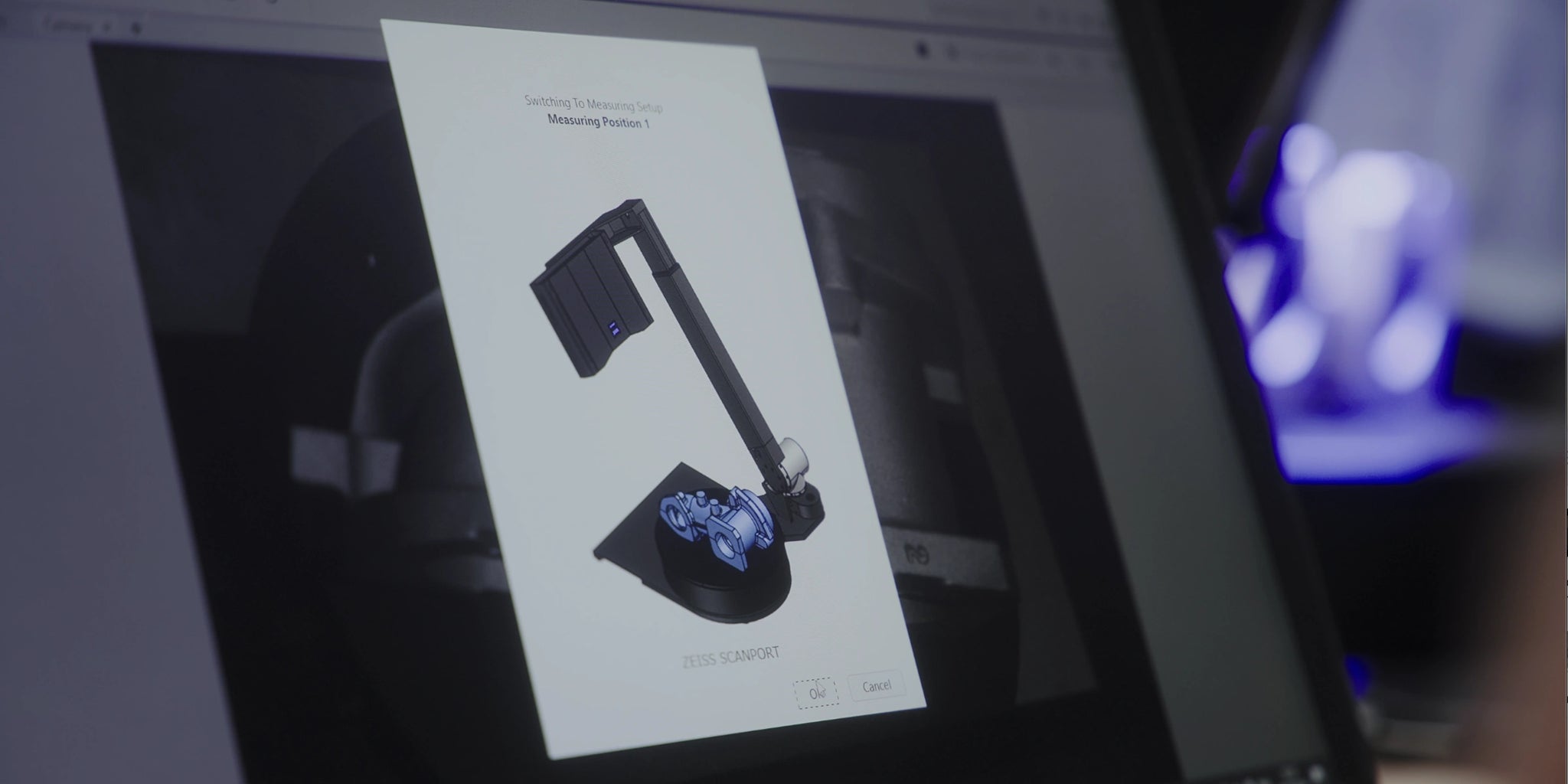

Quickly scan multiple parts at once with ZEISS ScanPort and ZEISS INSPECT. The workflow assistant and operator kiosk mode guide you step by step, automatically separating and aligning each part, with augmented reality support for precise positioning.

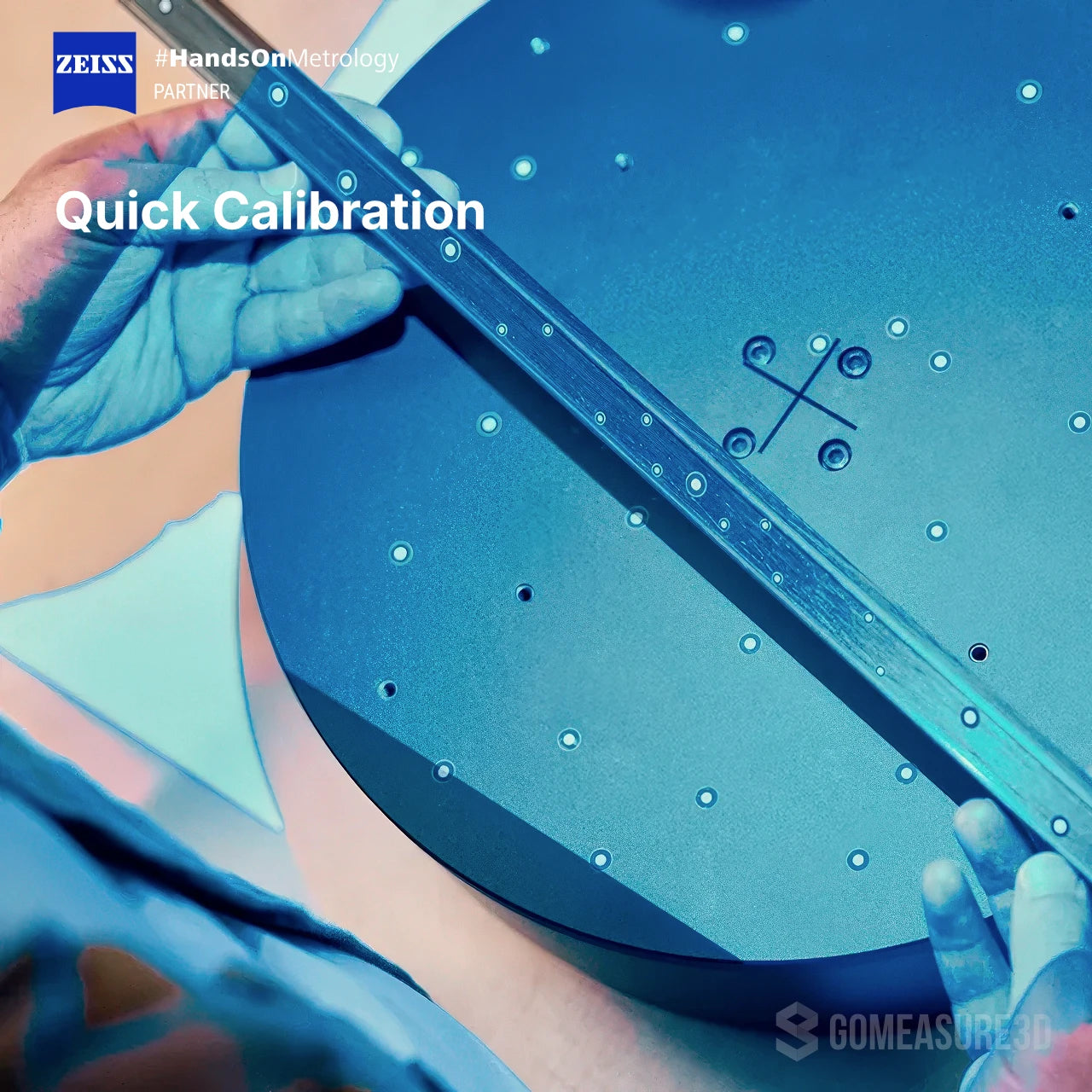

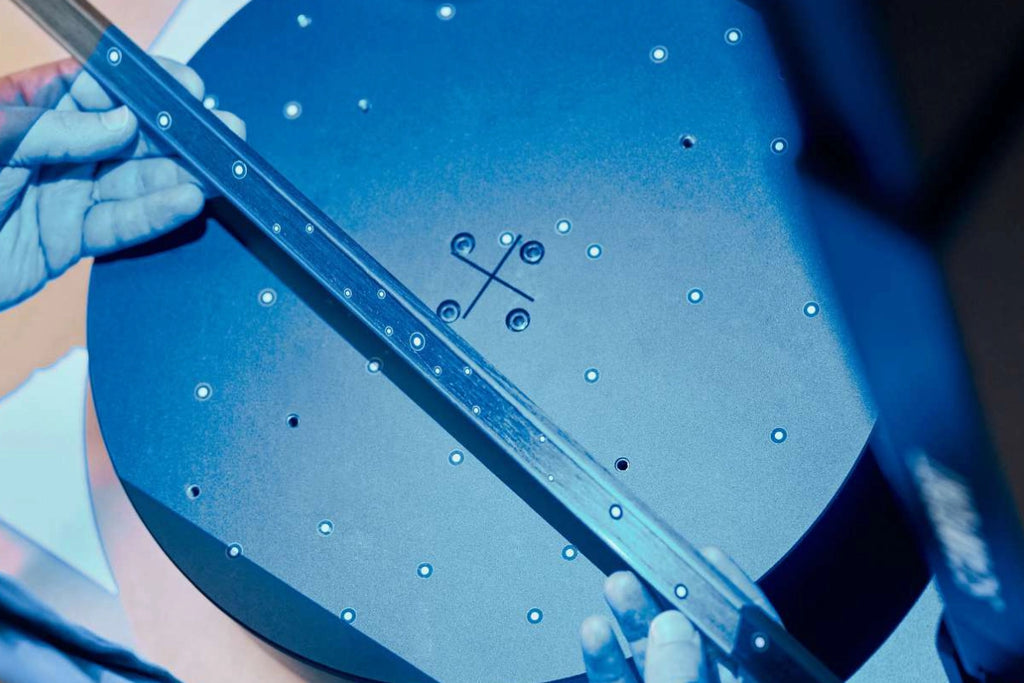

Quick Calibration for Accurate Results
Recalibrating the ZEISS ScanPort is simple and fully automated, ensuring you get the best performance from your equipment. Using the included DAkkS/ILAC-calibrated hyperscale, a quick one-shot calibration ensures your sensor consistently delivers high-quality data.

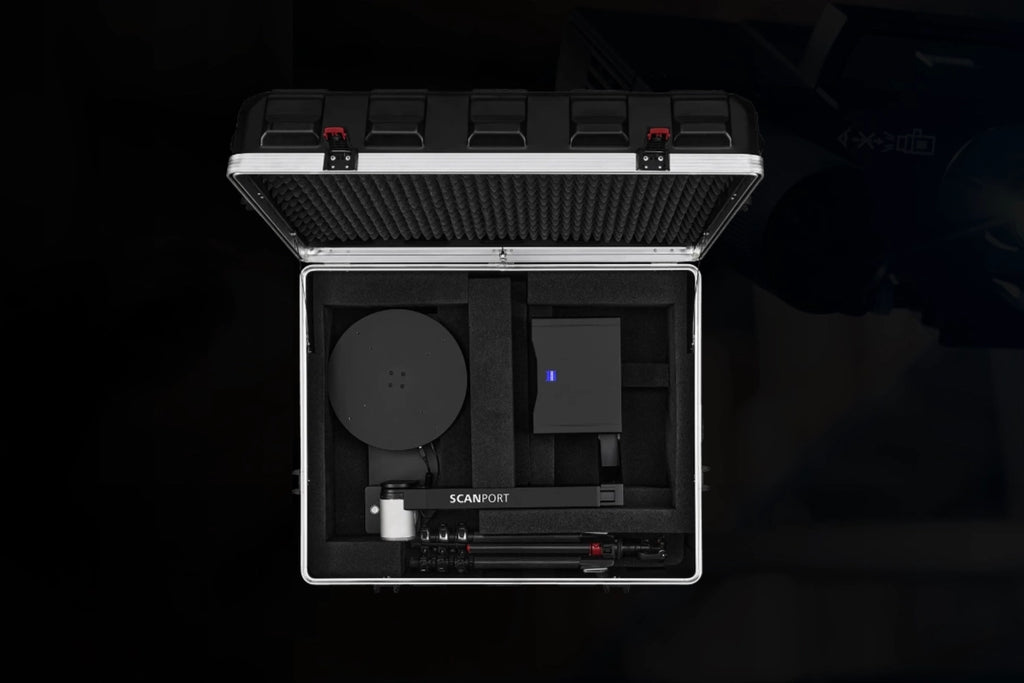

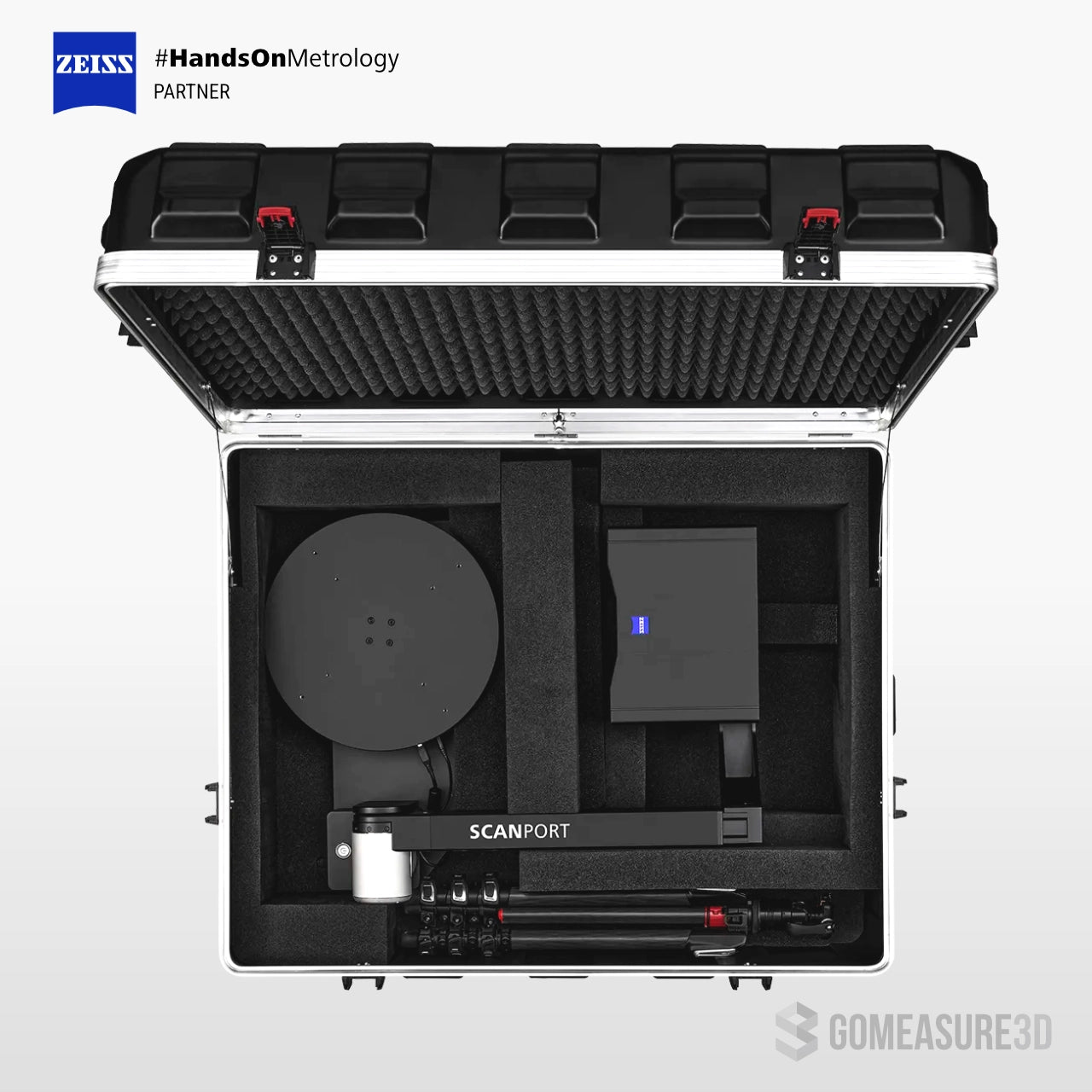

Take It Anywhere
An optional travel case safely stores and secures the ZEISS ScanPort and all components, making it easy to carry and set up.

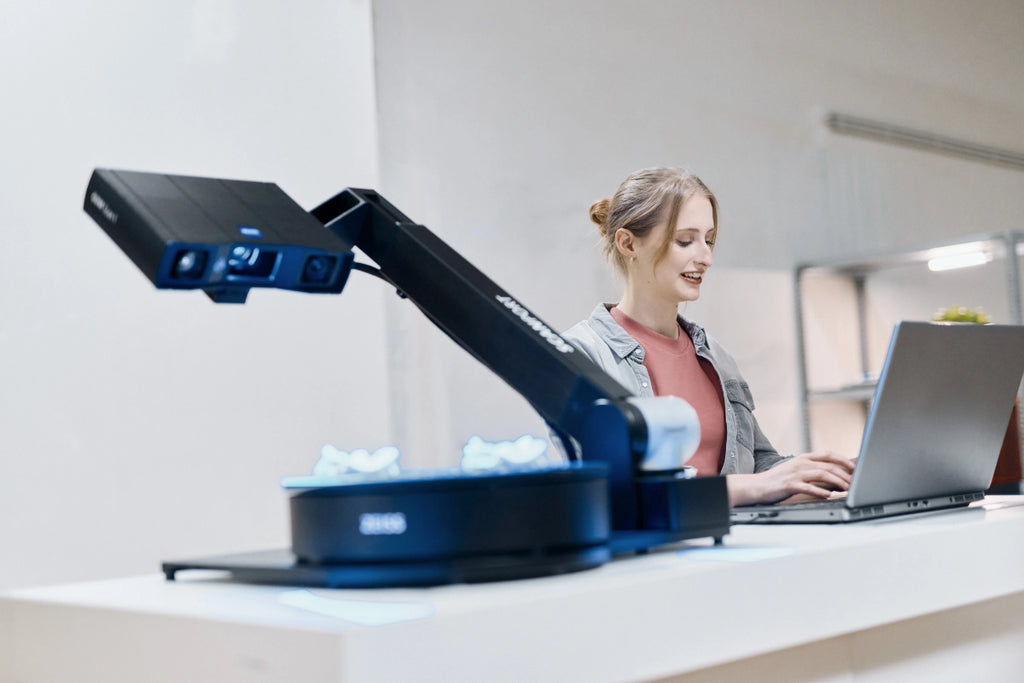

Industry Applications
ZEISS ScanPort is versatile for a wide range of applications including:
- 3D printing
- Reverse engineering and manufacturing
- Virtual displays or 3D models
- Parts manufacturing quality inspection
- First Article Inspection (FAI) and Production Part Approval Process (PPAP)
- Plastic and injection molding
- Casting
- Punching and bending
