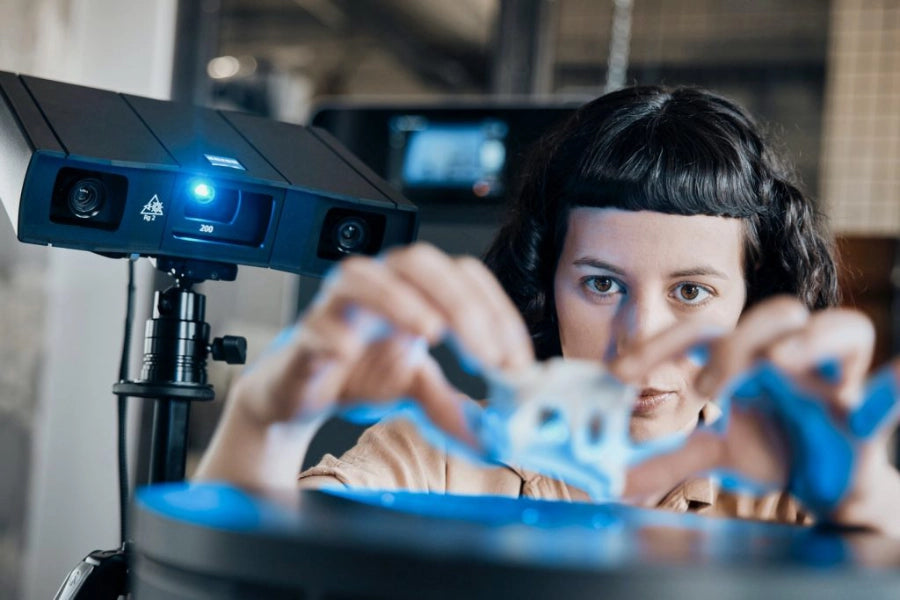

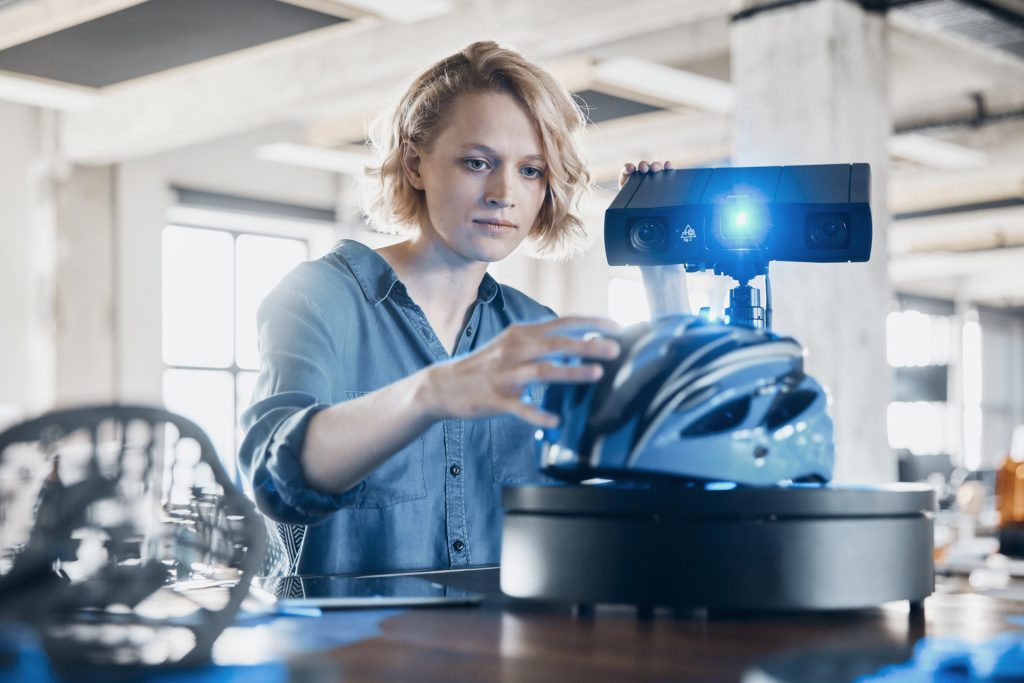

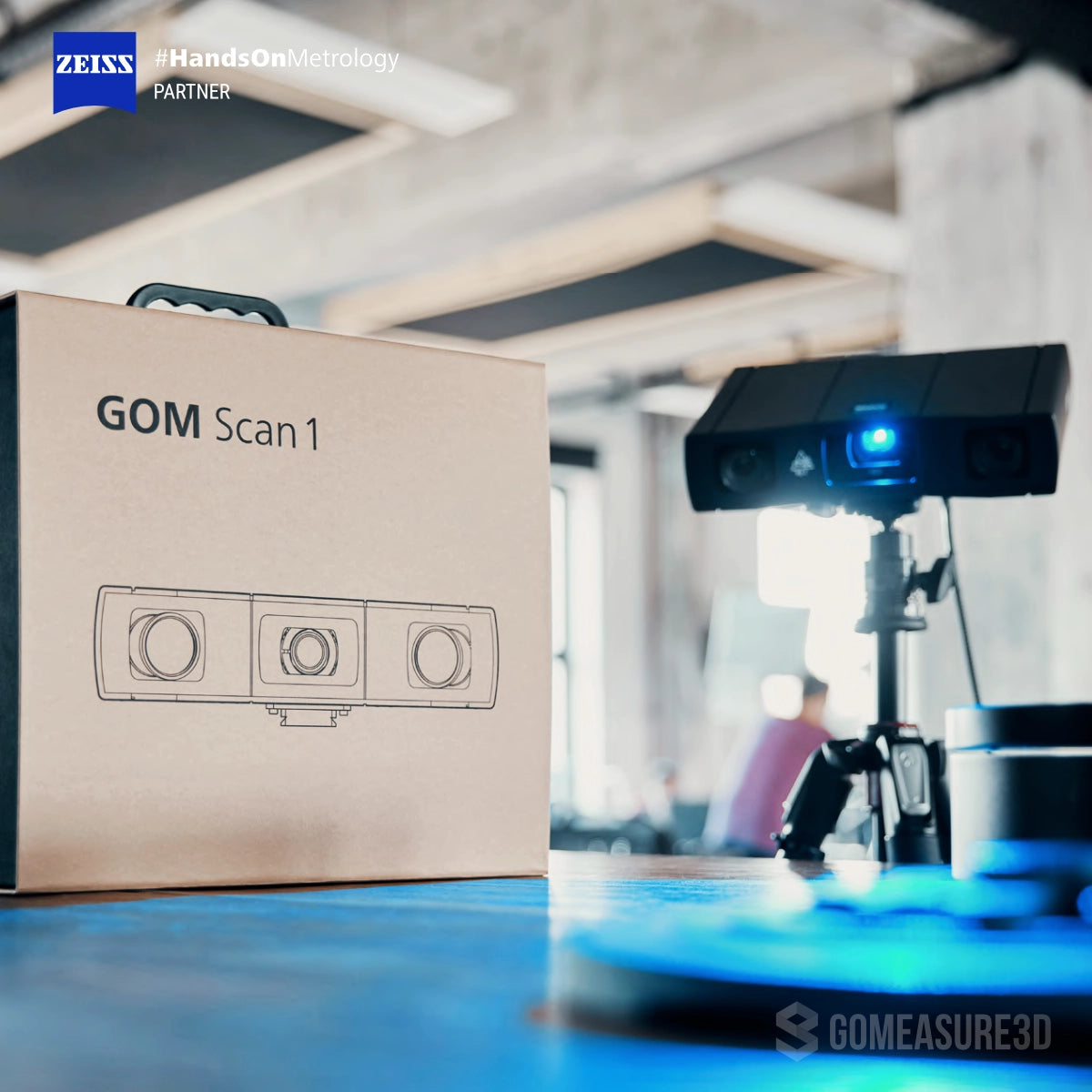

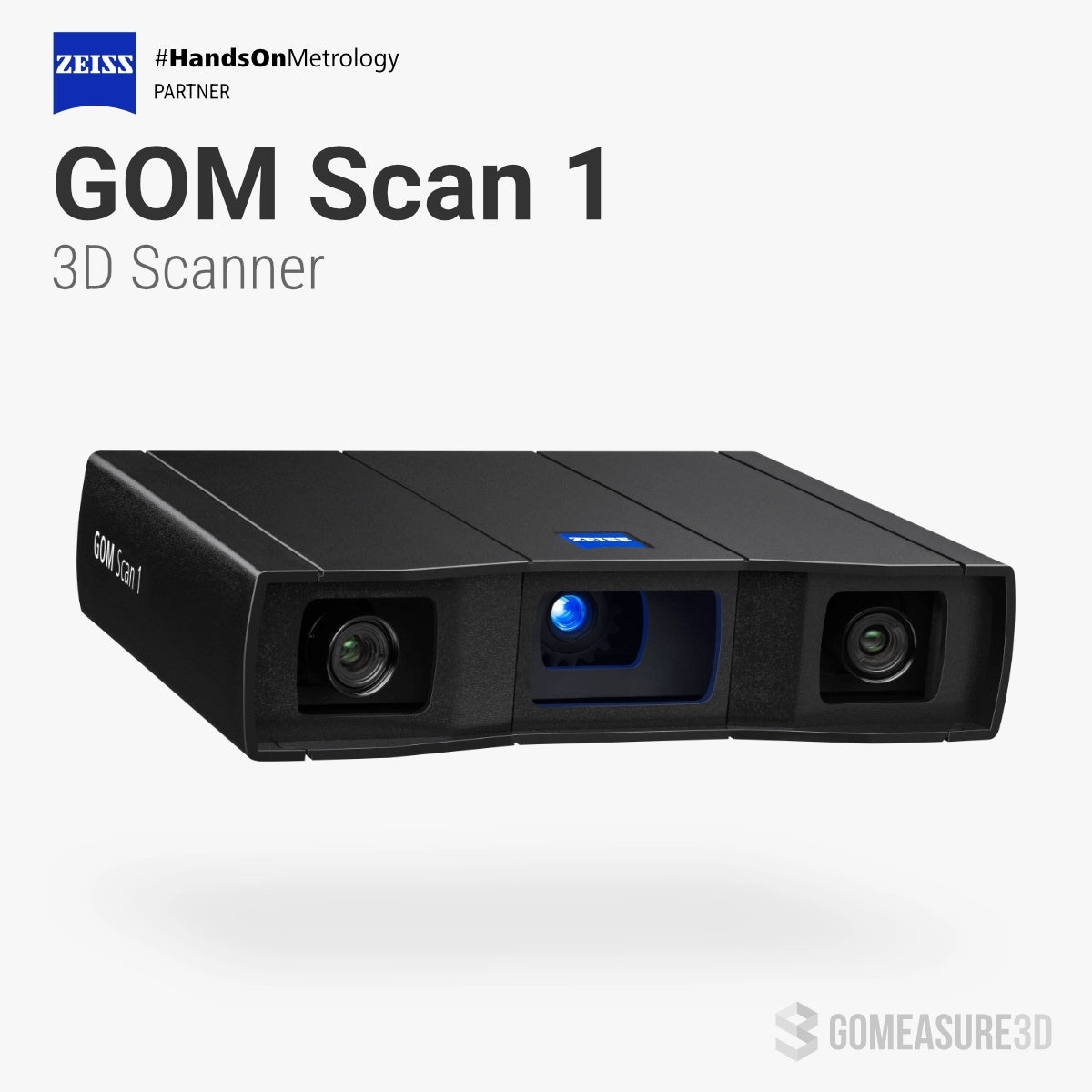

ZEISS GOM Scan 1 Plug-and-Play 3D Scanner
ZEISS GOM Scan 1 is a compact, portable 3D scanner designed for high-precision scanning of small to medium-sized objects. It features a compact shape and robust design with advanced technologies.
- Optical Blue Fringe Projection: Acquires 3D measurement data across surface areas of the part.
- Fast Data Capture: Up to 6 million points per scan with a point distance of up to 0.129 mm to 0.037 mm, depending on the selected model (based on measuring volume).
- Stereo Camera System: Employs a dual-camera setup to enhance depth perception and accuracy during scanning
|
🗓 Instantly Book a Web Demo With Us
We can give you a personalized experience without ever leaving your desk. Demo time will be confirmed immediately after you submit your request. Book using our calendar.
|
Technical Specifications
Different applications have different requirements. GOM Scan 1 is available in three models with different measuring volumes to suit your needs. All three sensors deliver high-precision measurements for small to medium-sized objects.
MV 100:
- Measuring area: 100 x 65 mm²
- Points per scan: 6 million
- Point distance: 0.037 mm
- Working distance: 400 mm
MV 200:
- Measuring area: 200 x 125 mm²
- Points per scan: 6 million
- Point distance: 0.060 mm
- Working distance: 450 mm
MV 400:
- Measuring area: 400 x 250 mm²
- Points per scan: 6 million
- Point distance: 0.129 mm
- Working distance: 500 mm

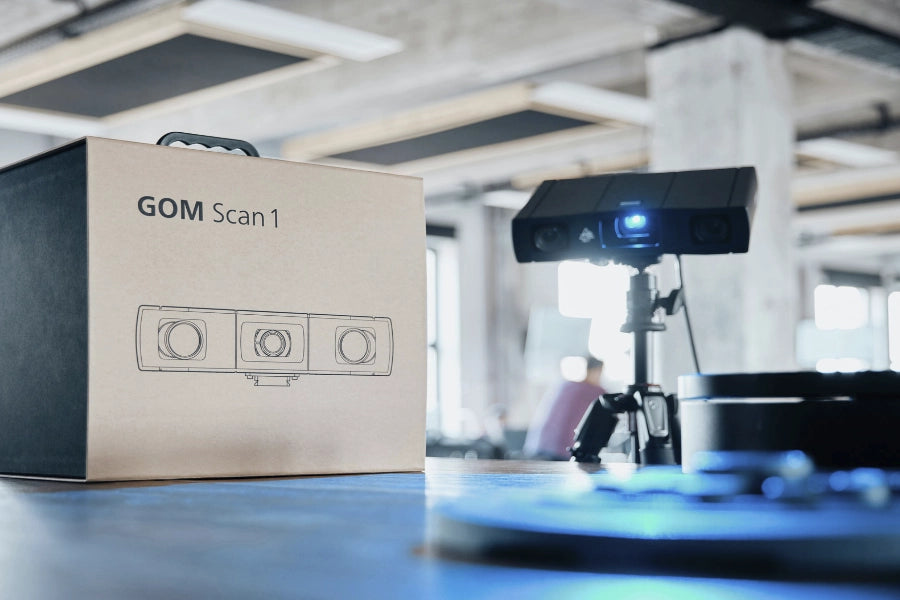

GOM Scan 1 is a plug-and-play 3D scanner that makes it easy to digitize physical parts into 3D models. It’s compact, portable, and simple to use—perfect for part inspection, 3D visualization, reverse engineering, or even preparing for 3D printing.
What is GOM Scan 1?
GOM Scan 1 is a 3D scanning solution specializing in taking fast measurements of small to medium-sized parts–even in confined spaces. Built on industrial-grade technologies like fringe projection and blue light technology, it delivers highly detailed and accurate 3D meshes. The integrated ZEISS INSPECT software lets you apply your mesh data to a wide range of applications—from parts inspection, 3D printing, and reverse engineering.
Why Choose GOM Scan 1?

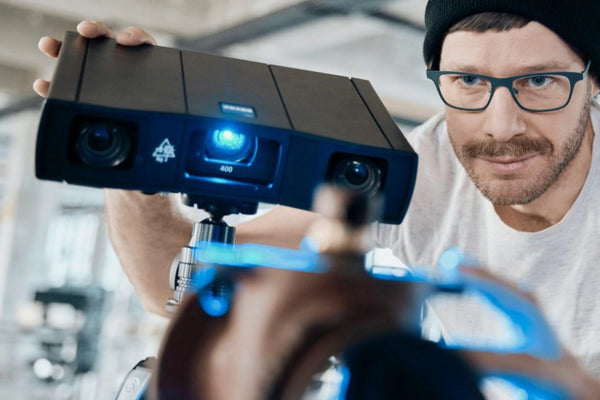

A Powerful 3D Scanner

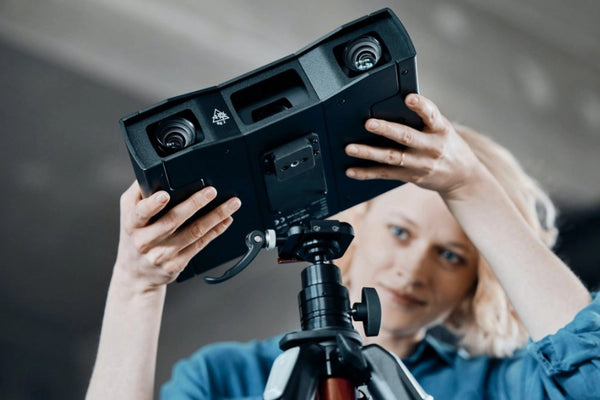

Lightweight, Mobile, and Easy of Use
Fast and Precise
Which Model Is Right For You?
Choose Your Measuring Volume
All three sensors uses two 6-megapixel cameras to deliver high-precision measurements. The resolution of your scan increases as the field of view decreases.
While the 3D sensor you choose can be determined by the size of the part, it is mainly determined by the resolution of the meshes you desire.
GOM Scan 1 Model (Measuring Volume):
- MV 100: 100 x 65 mm²
- MV 200: 200 x 125 mm²
- MV 400: 400 x 250 mm²
GOM Scan 1 Highlights

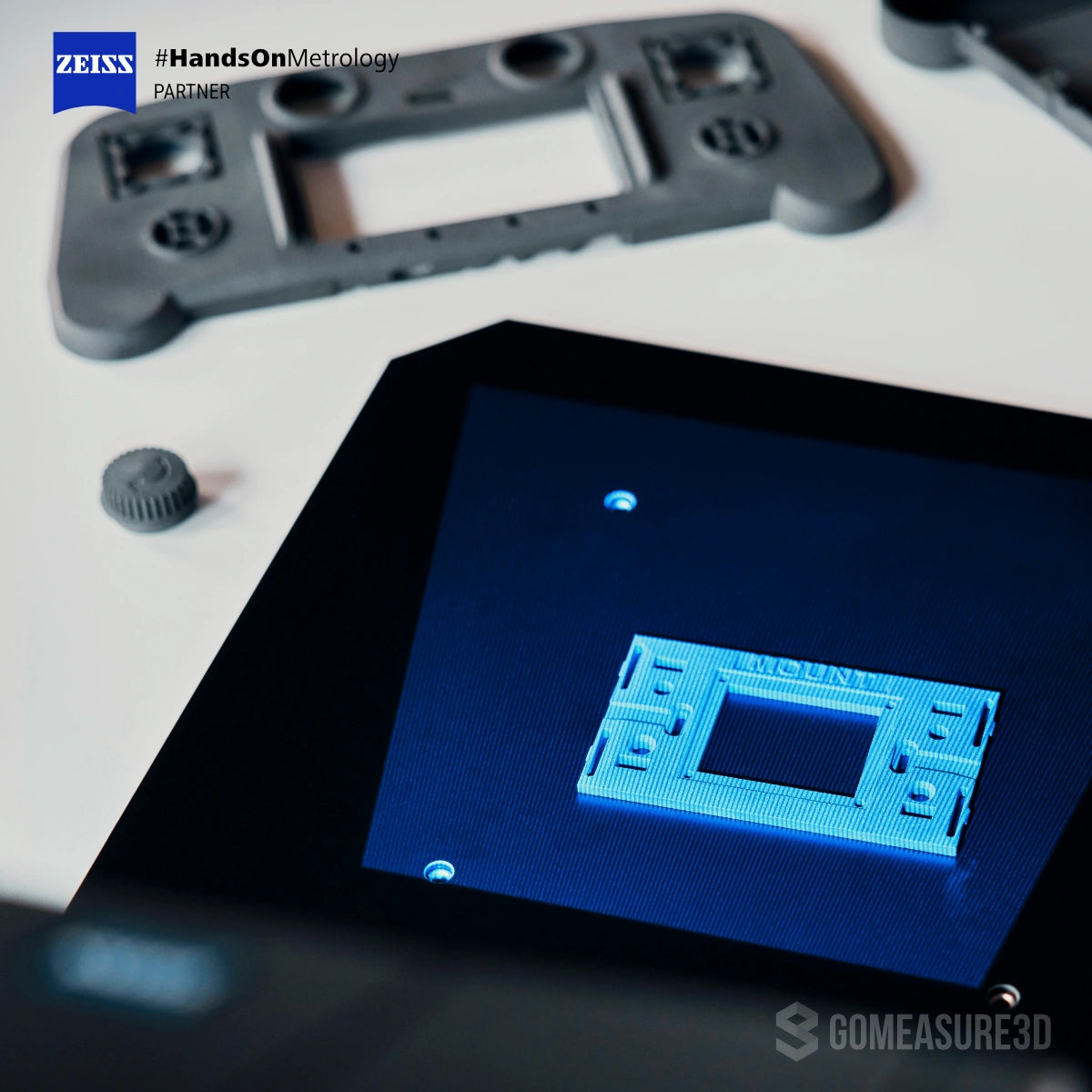

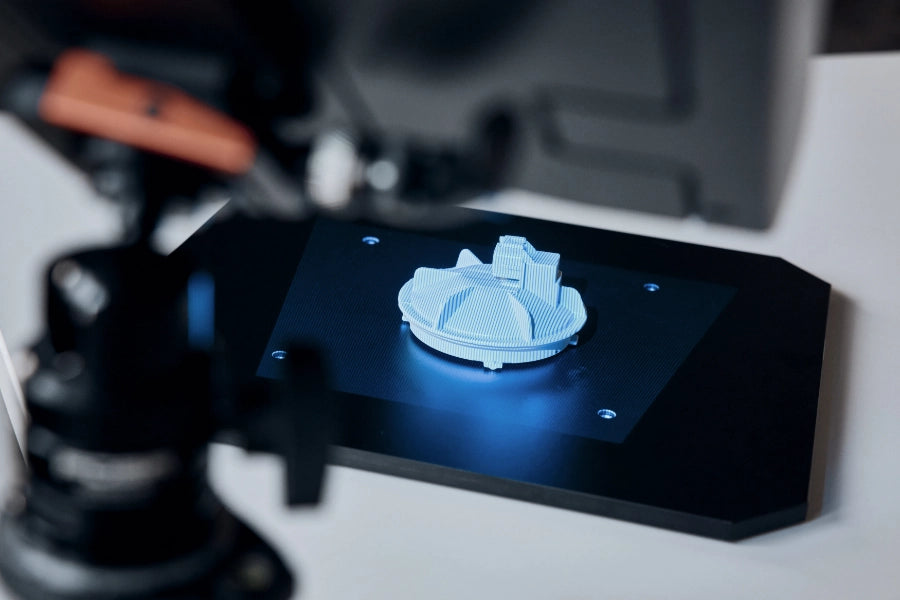

Get There Fast with Fringe Projection

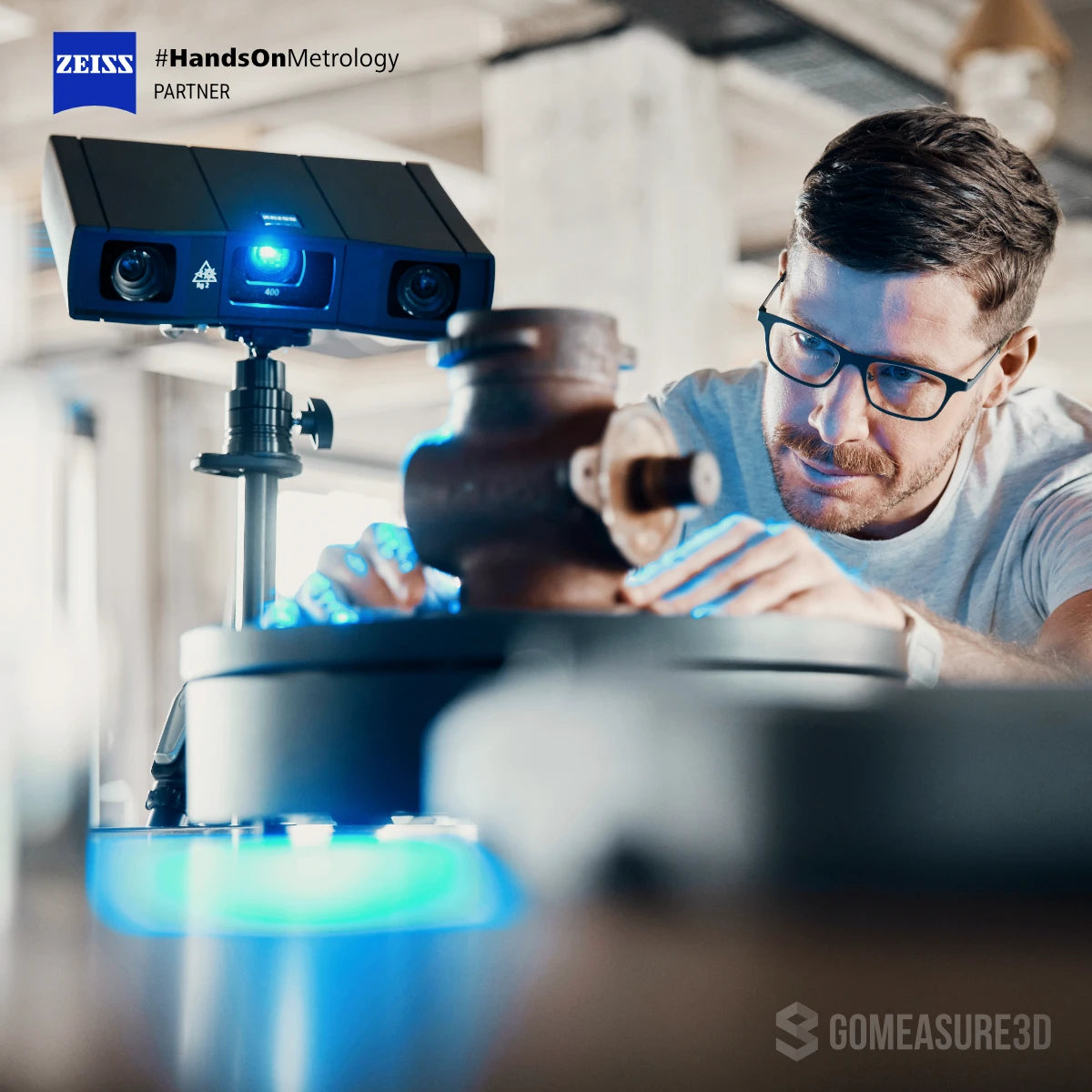

GOM Scan 1 is an optical 3D fringe projection scanner. It captures the complete surface of components with blue fringe projection and delivers detailed resolution fast.
Self Monitoring for Optimal Performance

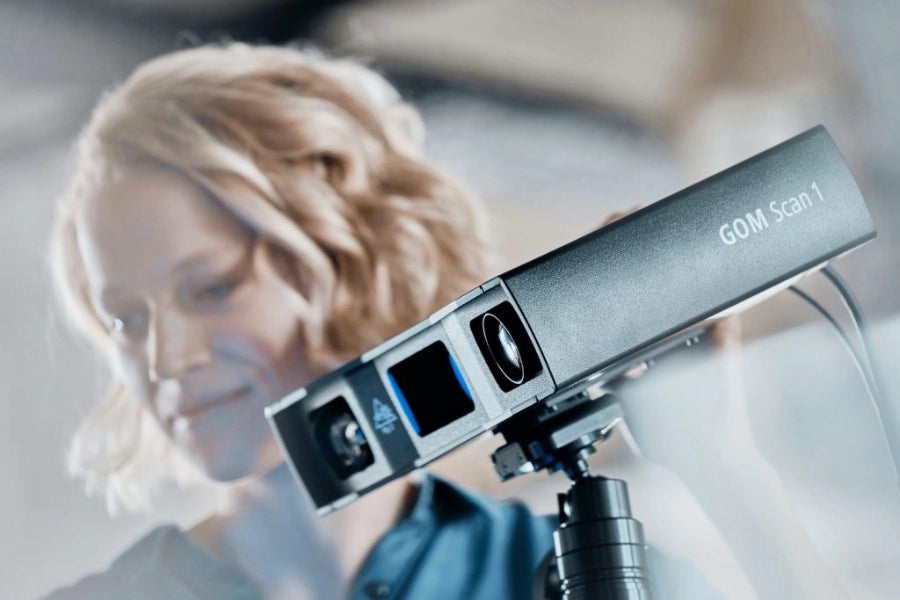

GOM Scan 1 uses the stereo camera principle. As a result, it recognizes changing ambient conditions during operation and can compensate for these changes. To ensure the quality of the measuring data, the software of the 3D scanner continuously monitors the hardware status, making sure it's performing at optimal condition.
Precision in All Lighting Conditions
The GOM Scan 1 uses blue light technology in its projection system. Because it works with narrowband blue light, it can filter out interfering ambient light while capturing images. Thanks to its strong light source, it also delivers fast measuring times.

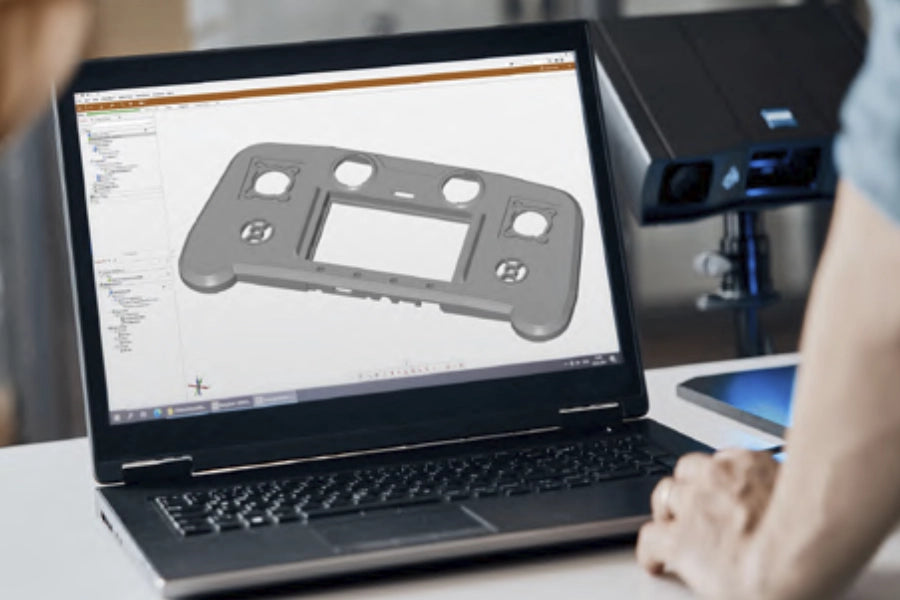

Intelligent Mesh Editing
ZEISS INSPECT has mesh editing capabilities, allowing you to smooth, thin and refine polygon meshes, fill holes or extract curvature lines. You can capture very accurate meshes that can be saved in many common formats. The best part: smart polygonization. It creates a mesh with highest detail while keeping the mesh size easy-to-handle.
ZEISS INSPECT Metrology-Grade Software
GOM Scan 1 operates with ZEISS INSPECT, the well-established standard in 3D metrology and part of the ZEISS Quality Suite.
Take your 3D data to the next level. ZEISS INSPECT is perfect for detailed evaluations. You get even more powerful functions like GD&T calculations, trend analyses and digital assembly. The full version of our software also holds apps with even more specialized functions for different industries. Save time with the parametric concept which allows you to create project templates for future projects.
Learn MoreIndustry Applications

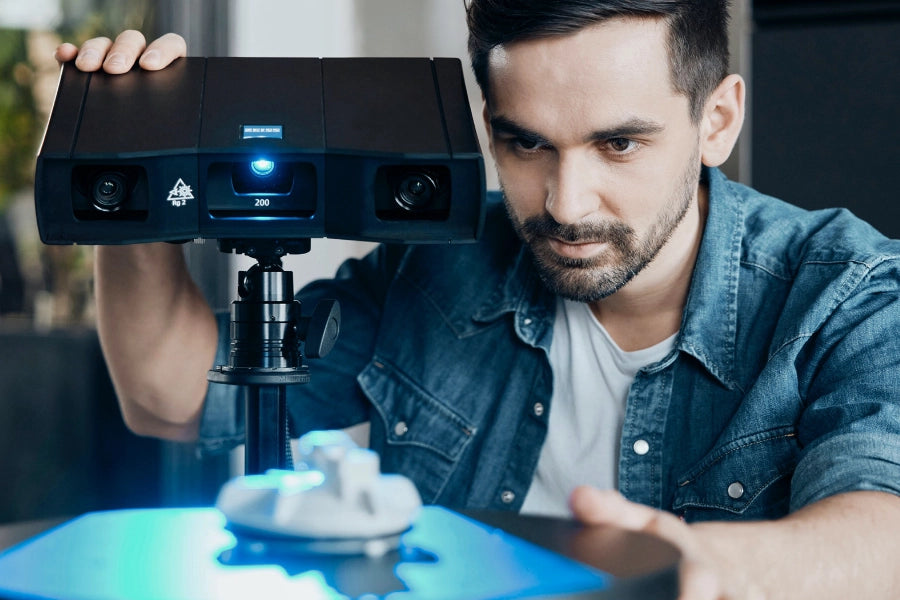

Measure and Inspect Your Products

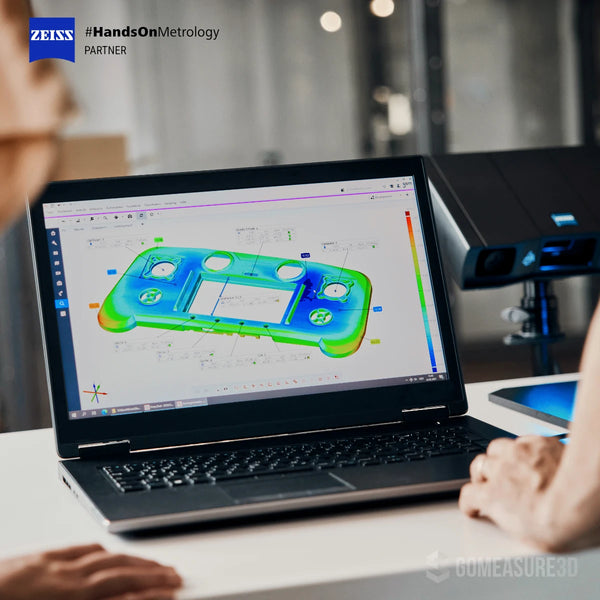

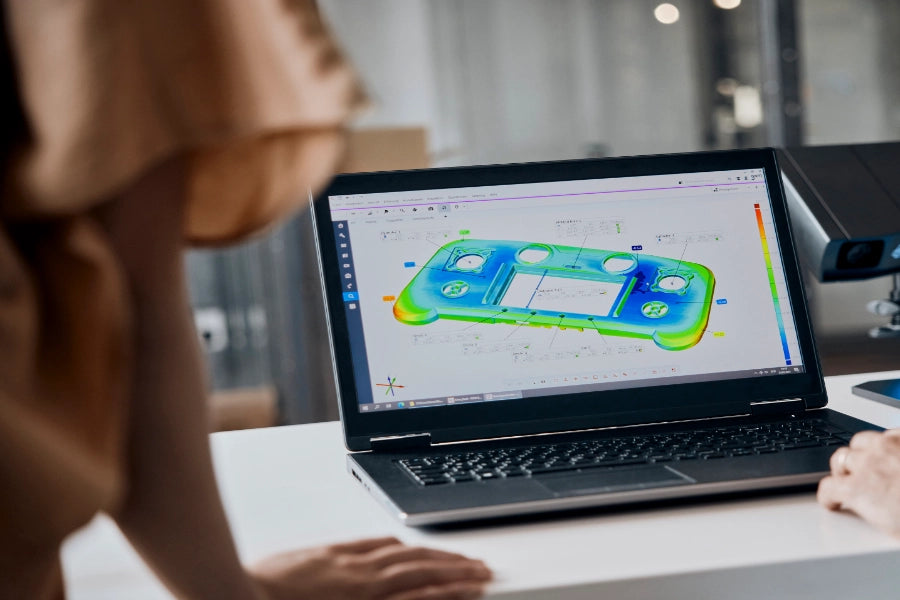

GOM Scan 1 with ZEISS INSPECT is a system to support your entire workflow. It helps you to get accurate and comprehensive measurement results and makes part inspection effortless. Import and align CAD and mesh files, create surface comparisons and inspection sections and generate reports—easily and efficiently.
3D Inspection
- Check parts to CAD or Drawing
- Statistical process control
- Identify process problems faster
Capture Your Ideas with Reverse Engineering and 3D Printing

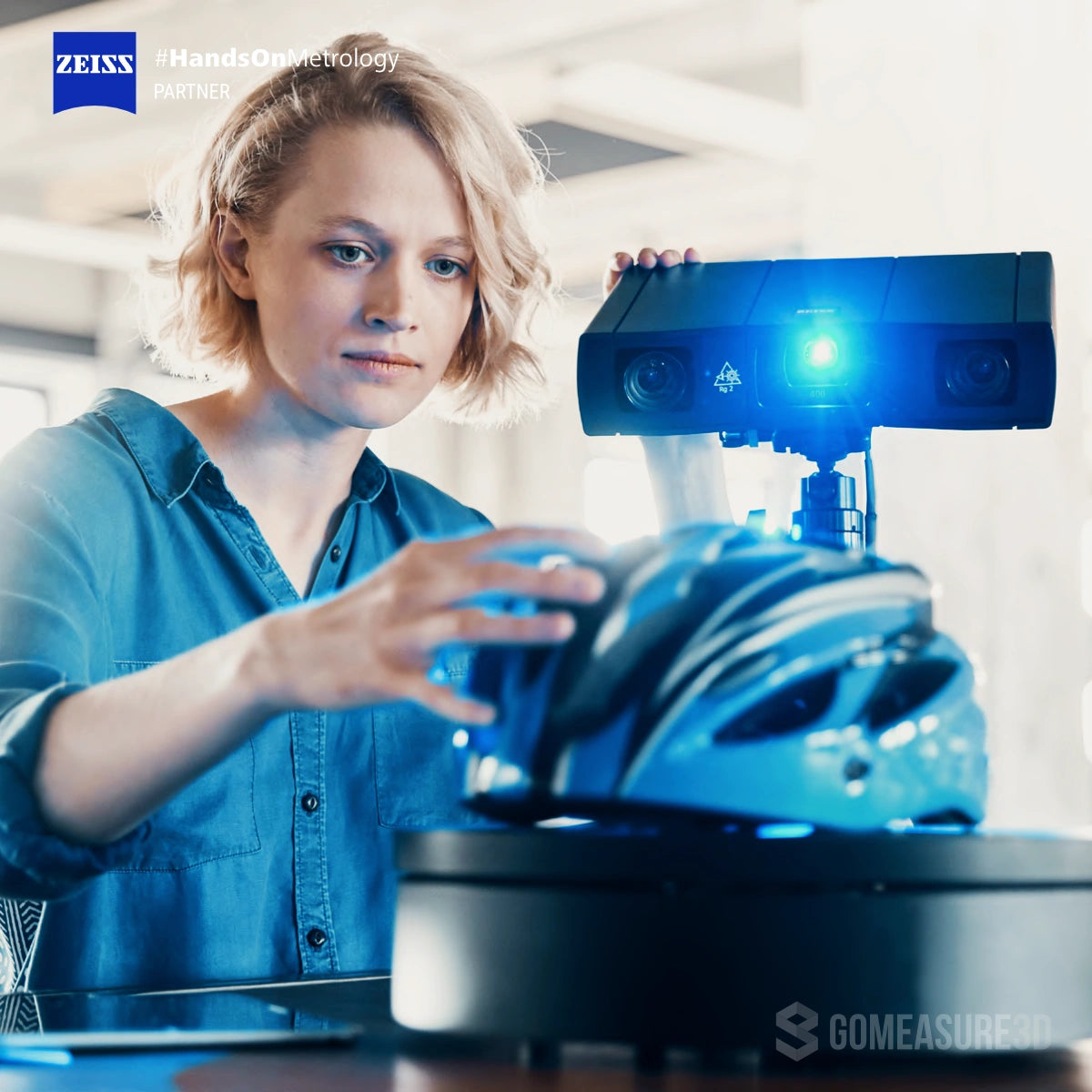

GOM Scan 1 with ZEISS INSPECT supports tasks such as 3D printing, 3D models of a part, and reverse engineering. Whatever your idea, it meets professional and industrial standards to make it happen.
Reverse Engineering
- From shape to CAD
- Easy to modify and adapt
- Spare parts creation
Additive Manufacturing
- Actual comparison with CAD
- Visualization of rework requirements
- Dimensional certification
Flexible Solution
Applications include:
- 3D printing
- Reverse engineering
- Creation of 3D models
- Archiving cultural assets
Industries include:
- Manufacturing
- Research and education
- Art and cultural preservation
- Design
- Health care
ScanPort for Easy Automation
Compact and flexible, ZEISS ScanPort delivers automation wherever you need it. This accessory is compatible with GOM Scan 1 and ATOS Q 3D scanner.
3-Axis for Automated 3D Scanning
ZEISS ScanPort is a complete solution for 3-axis automation with just one click. It is a mobile and flexible semi-automated system that delivers metrologically flawless data. Operated with ZEISS INSPECT, ZEISS ScanPort is your all-in-one solution to capture all details of your parts.
Reproduce Your Scan in One Go
ZEISS ScanPort is a powerful tool designed for the repeated inspection of complex, similar parts (multi-part scanning). With its motion replay feature, you can repeat the exact same measurement process with a single click—automatically updating the inspection for each new part. It also allows you to compare deviations across all scanned parts, making it easy to spot trends and variations quickly.
- High repeatability and accuracy
- Customizable template-based 3D scanning
3D Scanning for Parts Manufacturing Inspection
Discover how you can reimagine your quality inspection workflow—delivering greater accuracy in significantly less time.
Be Confident in Every Inspection with 3D Digitization
Even the smallest imperfection can compromise performance, lead to costly recalls, or damage your reputation. Conventional inspection methods are slow at taking measurements. They often overlook minute defects that are difficult to catch.
Ditch the complexity to get better and more accurate results. With 3D scanning, you can capture measurements of a physical object with exceptional accuracy! Instantly compare 3D scanned data of a part against your CAD models to detect even the slightest deviations—before they become bigger problems.
Book a Live Web Demo with Us
Hassle-Free Booking
Scheduling a demo with us is fast and easy. Pick a day and time that works for you and press confirm—that’s it. You’re all set! We’ll email you the meeting instructions and see you there. 👋
We’ll walk you through everything you want to know about 3D scanning and show you how this technology can transform the way you work for your metrology needs.
Schedule a DemoFAQ
Common questions to GOM Scan 1 3D scanner.
What are the technical specifications of the GOM Scan 1?
GOM Scan 1 has 3 models with different measuring area. You can find the full technical specification in the brochure.
For All Models:
- Light source: LED
- Connection: USB 3
- Operating System: Windows 10
- Software: ZEISS INSPECT
MV 100:
- Measuring area: 100 x 65 mm²
- Points per scan: 6 million
- Point distance: 0.037 mm
- Working distance: 400 mm
MV 200:
- Measuring area: 200 x 125 mm²
- Points per scan: 6 million
- Point distance: 0.060 mm
- Working distance: 450 mm
MV 400:
- Measuring area: 400 x 250 mm²
- Points per scan: 6 million
- Point distance: 0.129 mm
- Working distance: 500 mm
