AESUB Target Net

Regular price $ 600.00

Unit price per

only 0 left in stock

Reusable Reference Point Target Net Makes It Easy and Quick For 3D Scanning Large Objects

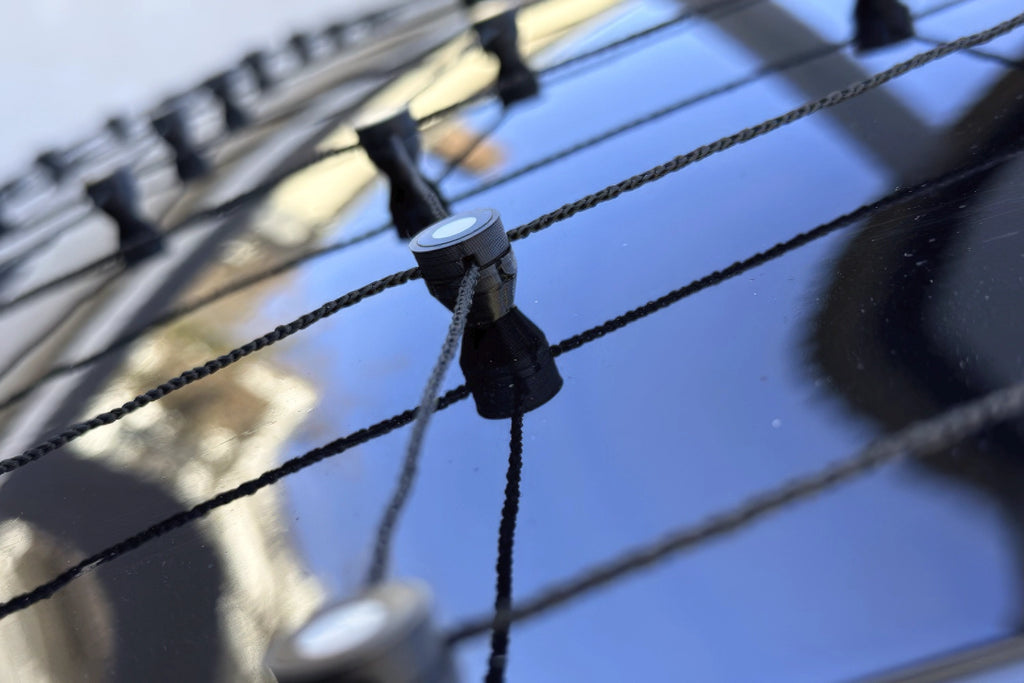

AESUB Target Net are measurement targets that are distributed uniformly at intervals of approximately 100 mm across the entire net. The Target Net measures 1500 x 2500 mm and has approximately 300 measurement targets. Due to the high measurement target density, several scans can be performed very quickly from different perspectives. The 3D scanner either can't see the mesh threads or they can be easily removed during post-processing.

Features

  • Retroreflective reference points for immediate application on medium-sized or large components
  • Magnet on each point base that will hold onto magnetic surfaces
  • Diameter 6 mm (equipped with 6mm retro-reflective reference points)
  • Size: 1.5 x 2.5m
  • Dots are mounted on a black mesh
  • Removing the points is not necessary
  • Reusable
  • Perfect for application on all vanishing AESUB sprays
  • Easy to Transport
  • The reference points hover approximately 10mm above the surface

Steps To Using AESUB Target Net

Using the Target Net is very simple in 4 easy steps:

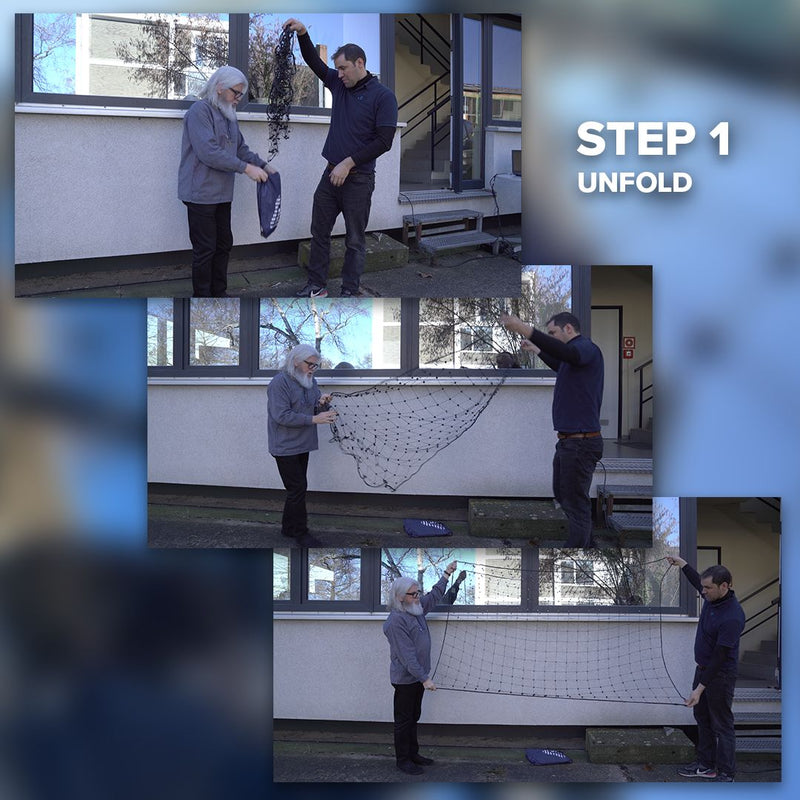

  • Step 1: Unfold the Net

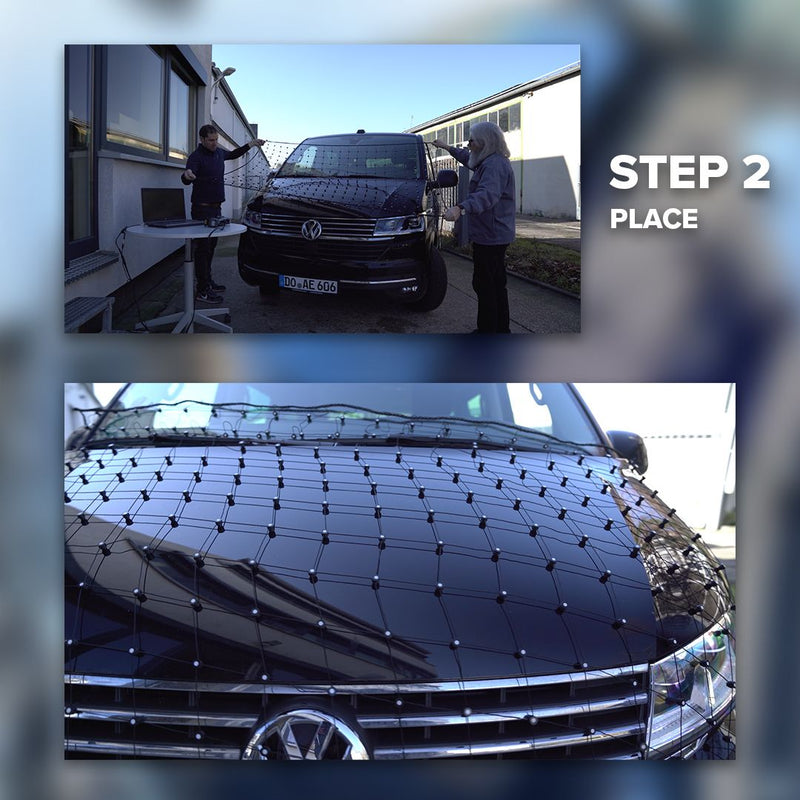

  • Step 2: Evenly place the magnetic targets across the large object

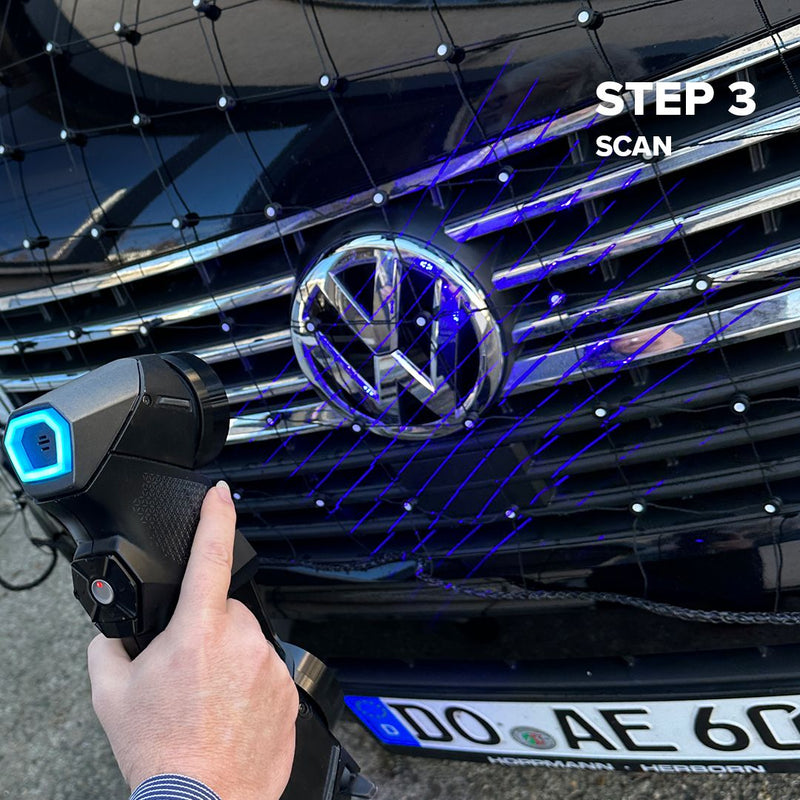

  • Step 3: Scan the object as usual

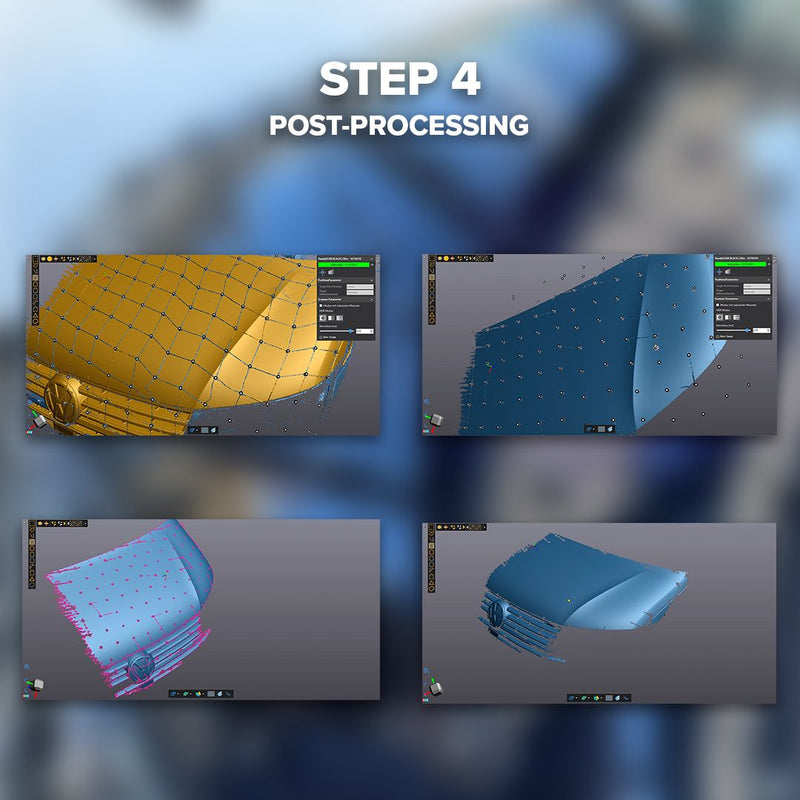

  • Step 4: Post-process the scans
