Plug-in for SOLIDWORKS that empowers you to edit massive point cloud data natively in SOLIDWORKS CAD modeling software
Veesus Point Clouds for SOLIDWORKS plug-in brings the power of the Veesus XStream Engine to Dassault Systems’ SOLIDWORKS software. The plug-in provides high-speed visualization for importing and editing enormous point clouds of any size inside the native SOLIDWORKS environment.
Once the point cloud has been loaded into the SOLIDWORKS environment, the plug-in also offers powerful point cloud manipulation tools including slicing, clipping, smoothing, lighting, magnification, color ramp, and export.
Whether you are an engineer, surveyor, site manager, or end user, Veesus Point Cloud for SOLIDWORKS gives you powerful point cloud manipulation capabilities for fast editing, visualization, and content creation.

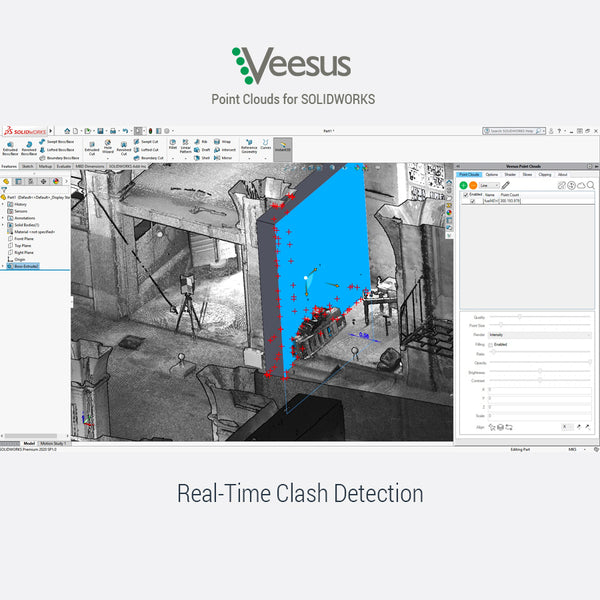

Slice, clip, copy, delete, smooth, and light your point cloud data effortlessly, without the need for additional tools. Reduce the need for rework and site visits with powerful clash detection features.
Unlimited Point Clouds: A powerful point cloud engine allows you to work in real-time on all data sets without constraint or compromise.

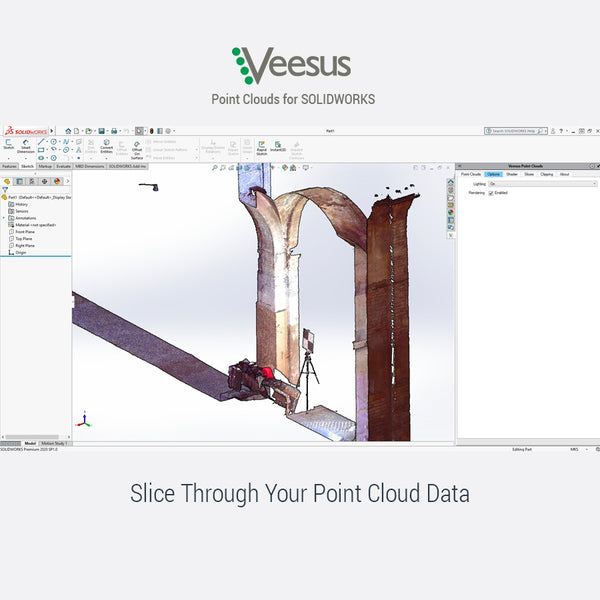

Slice: Extract geometric features such as 2D lines, arcs, and circles.
Clip: Select, duplicate or hide areas of point cloud data.

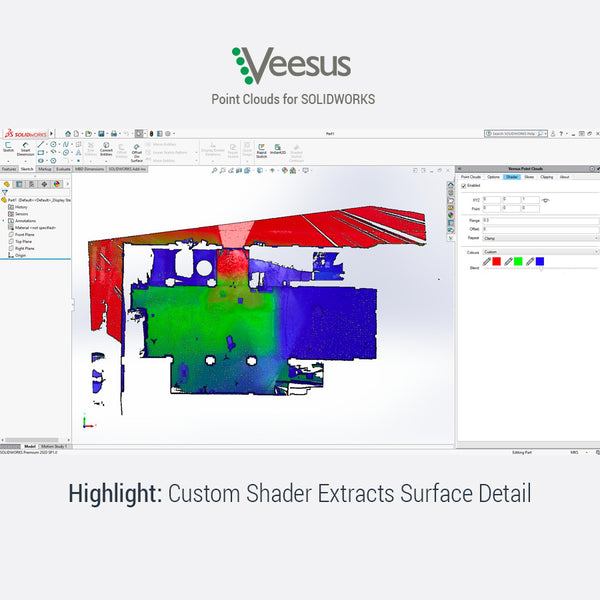

Shader: Highlight subtle features with a programmable shader.
Instantly access and use point clouds saved to the Zappcha Cloud to work on projects anywhere, anytime.
Why Buy Veesus Point Clouds for SOLIDWORKS?
Powerful:The only SOLIDWORKS plug-in to provide XStreamEngine power.

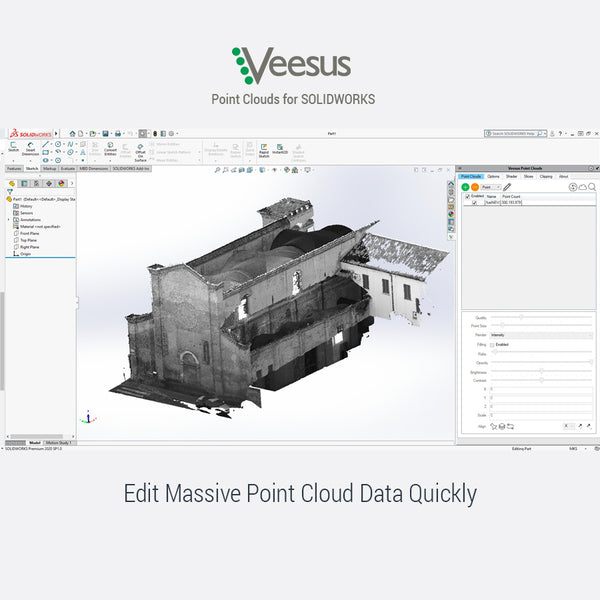

Work with large point cloud data: Import and work with point clouds of massive size with no issues without needing to invest in specialist equipment. Save time by working with point clouds directly in the SOLIDWORKS environment – no more time-consuming workarounds to use your scan data.
Constantly updated with improvements: Working with customers to constantly improve the product.
Proven: Based on years of experience and proven technology.
Easy to Use: Simple user interface, with powerful features.
New in 2021
Veesus Point Clouds for SolidWorks integrates with Zappcha, the new cloud storage and mobile capture solution for point clouds. SolidWorks users can load point cloud files directly from their Zappcha Cloud account, giving them instant access to point cloud data saved to the cloud – including point clouds captured on the latest Apple mobile devices.
Zappcha allows mobile phone and tablet (currently iphone 12 pro and up, iPad Pro) LIDAR scanning using the free Zappcha software.
A close-up of the proposed buildings in situ alongside as-built data from the point cloud.
What Is Veesus XStreamEngine?
The heart of Veesus’ software is the XStreamEngine, which enables Veesus to display and edit massive point clouds on standard PC hardware. This engine powers all Veesus software.
Veesus Points Clouds for SOLIDWORKS is currently available for SOLIDWORKS 2020 and SOLIDWORKS 2021.
What Is The Difference Between Standard and Professional Version?
Veesus Point Clouds for SOLIDWORKS is available in 2 versions: Standard and Professional. The Professional version adds clash detection, copying, deleting, rendering, CSV export, and plane through points functionality.
Massive Point Clouds
Stream Points Clouds from remote Veesus Point Server
Slice through Point Clouds
Generate Slice from SOLIDWORKS Plane
Generate SOLIDWORKS Plane from Slice
Draw Points, Lines, and Polylines straight onto the Point Cloud data
Align, move and rotate Point Clouds
Adjust brightness & contrast of Point Clouds

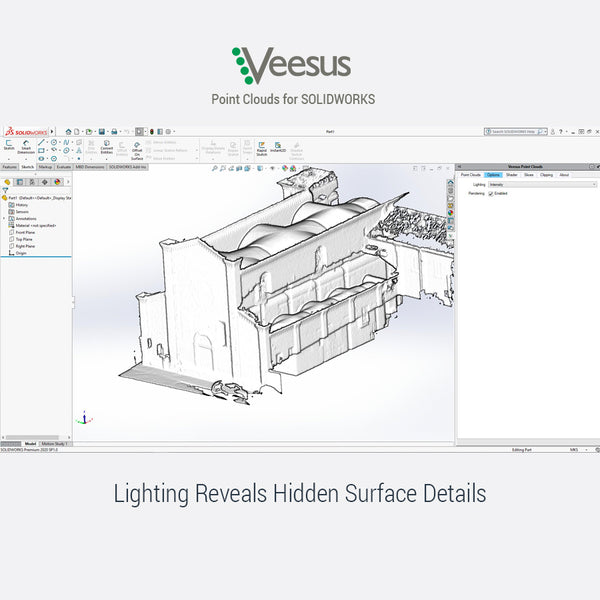

Apply dynamic lighting to Point Clouds
Apply transparency to Point Clouds
Apply programmable "relief" shader to Point Clouds
Clip and hide selections of Point Clouds
All of the standard features plus...
Create plane through selections
Create CSV report of point distances from a plane
CPU – 2.0GHZ Dual Core
GPU – 1GB, OpenGL 2.0 Compliant
RAM – 2GB HDD – 100MB (for installation)
For best performance, we recommend a quad-core processor, 8GB RAM an nVidia/AMD GPU, and an SSD disk drive.
Note:It is important to ensure you have the latest up-to-date graphics card drivers installed, and that in a dual GPU configuration (typically laptops) that the more powerful, non-integrated, GPU is used.
Evidence of academic affiliation, Student Card, Employment certificate, or similar is required. Educational license is not for commercial use.
