* Previously known as Mesh2Surface for SOLIDWORKS. Different name. Same software.
What is QUICKSURFACE for SOLIDWORKS?

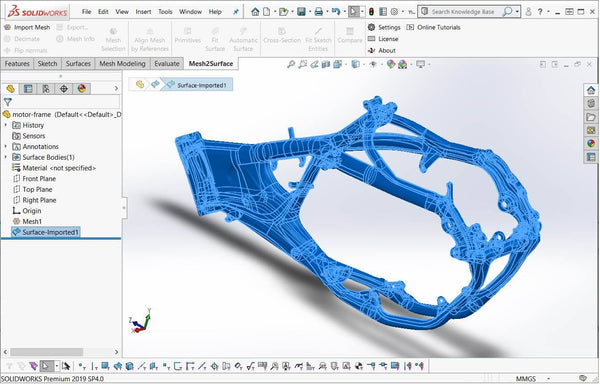

Equipped with easy-to-use tools for extracting features from your 3D scan data, you can use this QUICKSURFACE plug-in directly inside SOLIDWORKS to convert 3D scan meshes into CAD models. Extract geometric features with best-fit algorithms, draw sketches directly on the reference mesh, and build surfaces. The parametric behavior and real-time deviation analyzer usually only available in higher-end packages are also in QUICKSURFACE. This gives you all the flexibility and control you need to create accurate CAD models.
* Software is shipped electronically. You will receive a license key to activate the software. No physical product will be shipped. Once the software has been installed with the product key this product can no longer be returned.
What can you do with QUICKSURFACE for SOLIDWORKS?

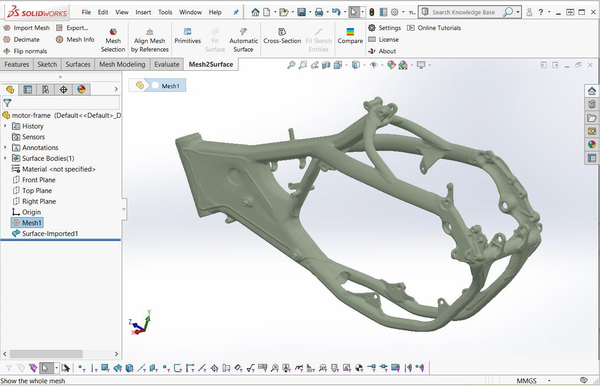

- Easily load scan data in seconds, not minutes

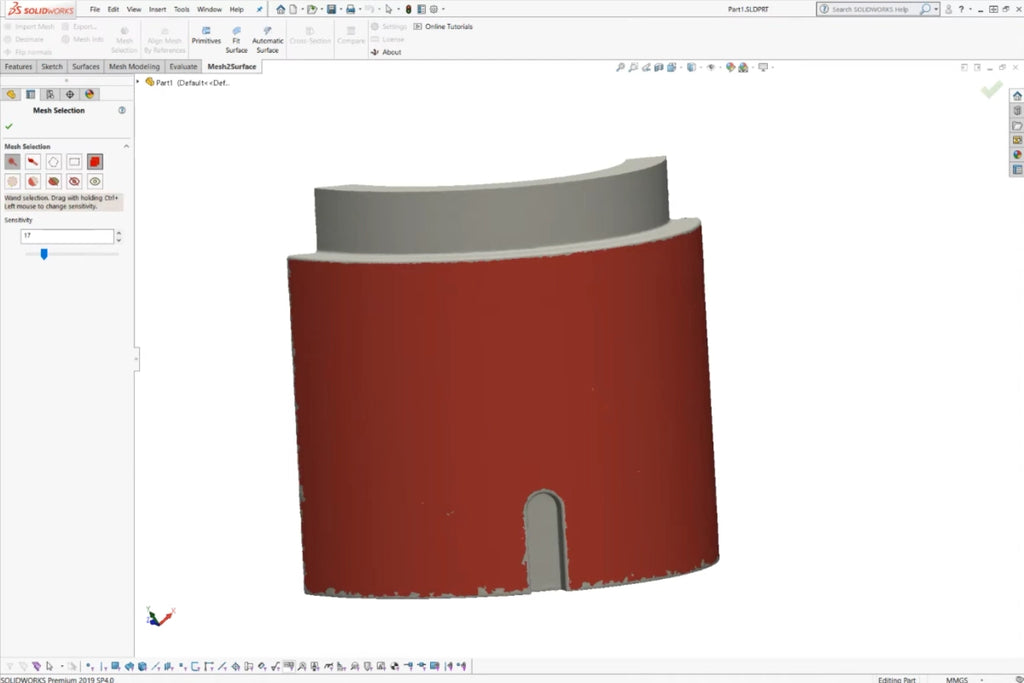

- Extract quickly reference geometries
- Align intuitively in the right position in 3D space

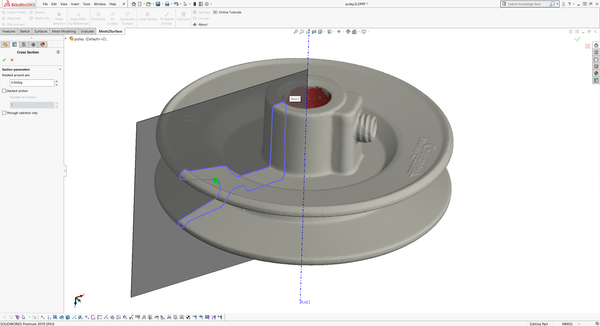

- Create reference sections for 2D sketching
- Approximate freeform surfaces with the best-fit surface

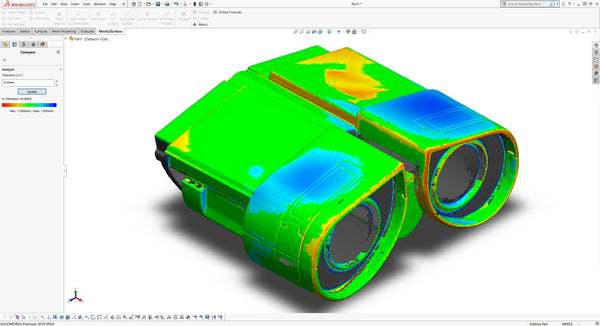

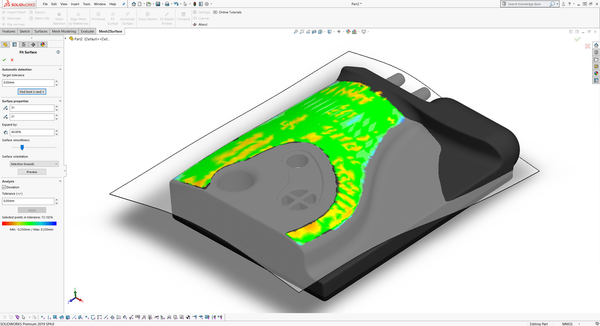

- Compare your work against the reference data instantly with a 3D color map

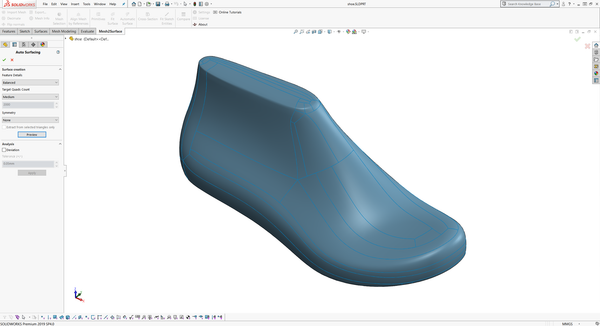

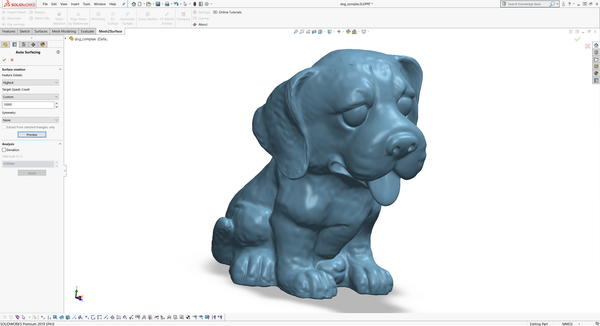

- One-button operation to convert freeform organic shapes
- And do all this in your favorite CAD package - SOLIDWORKS
What's Included?
- Single commercial license of Mesh2Surface for SOLIDWORKS
- Users are required to have a license of SOLIDWORKS® to use Mesh2Surface for SOLIDWORKS. It is not a stand-alone application.
See QUICKSURFACE for SOLIDWORKS In Action
View the tutorial videos to see how easy it is to reverse engineer scan data into CAD models inside SOLIDWORKS. Check Out Demo Video →
