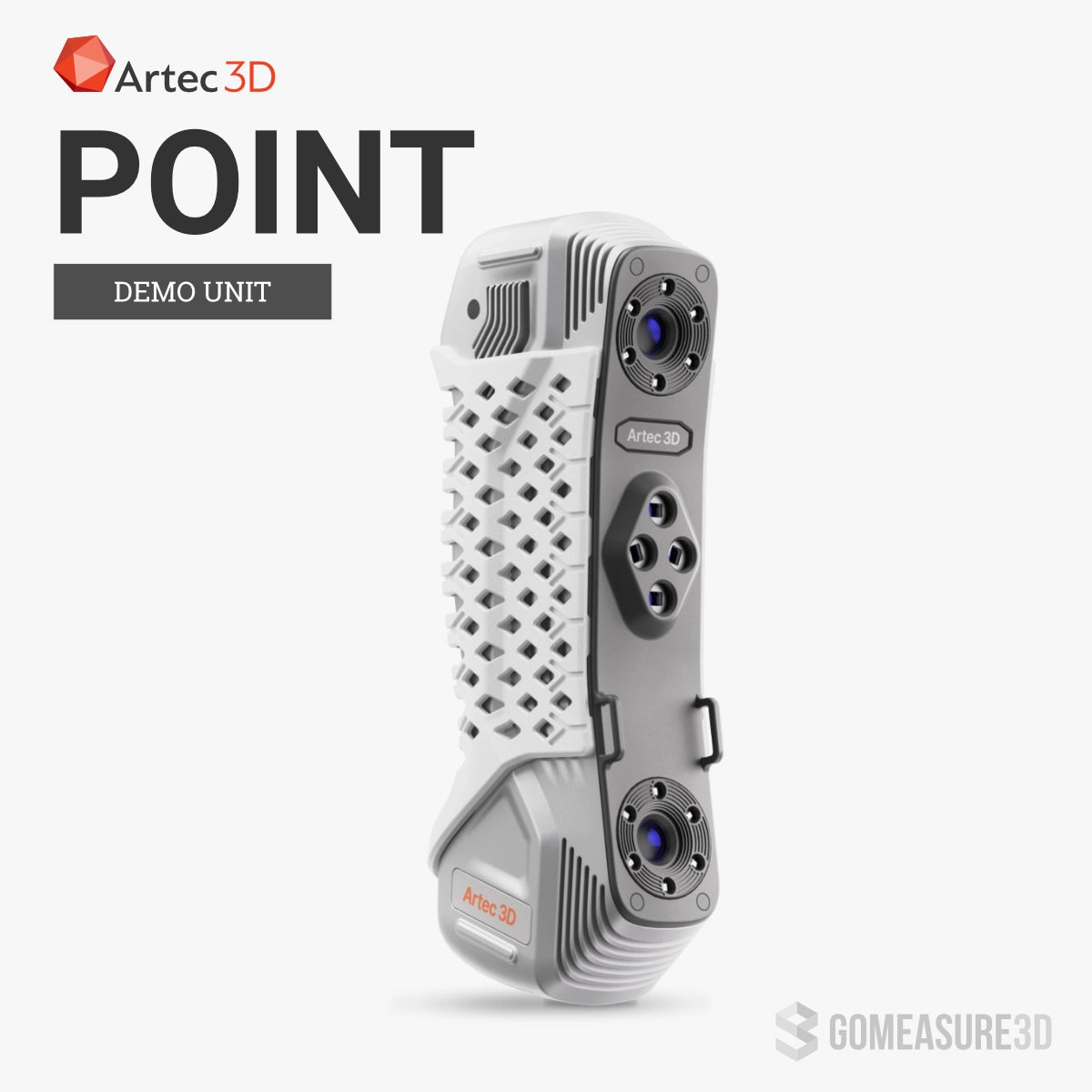

Artec Point (Demo Unit)
This is a demo unit for the Artec Point 3D laser scanner that is in excellent condition. This is the in-house demonstration unit for GoMeasure3D. It has been owned by and handled by us, an official Artec reseller, since it was purchased new.
For more information on the Artec Point including technical specifications, videos, and sample scans, please visit here or our product page.
🏷️ Looking for a good price on a new Artec Point 3D scanner? See if you qualify for any special discounts or promotions. Request a Quote →
Features
1) A metrology-certified 3D laser scanner
Artec Point’s high accuracy and repeatability are ISO & VDI/VDE-certified, so you can use it for advanced metrology, confident that you’ll get immediate, reliable results.
2) Achieve high repeatability
With an intuitive interface and unshakable tracking, Artec Point ensures that you get repeatable results regardless of operator skill, without having to fine-tune any settings.
3) Capture in confined areas
With a featherweight frame and ergonomic design, Artec Point can easily be used one-handed, and tilted to scan under, behind, or into seemingly unreachable areas.
4) Robust build quality
Housed in a metal, grip-friendly casing, the Artec Point 3D scanner is ideal for industrial metrology applications where durability is essential.
Technical Specifications
- Type: handheld 3D scanner
- Object Size: small, medium, to large sized objects
- 3D Point Accuracy: 0.02 mm
- 3D Resolution: 0.02 mm
- 3D Accuracy Over Distance: 0.015 mm + 0.035 mm/m (0.0006 in + 0.0014 in/ft), 0.015 mm + 0.015 mm/m with Artec Metrology Kit (0.0006 in + 0.0006 in/ft)
- Data acquisition speed (up to): 2.8 million points/second
- 3D reconstruction rate for real-time fusion, up to: 120 fps
- 3D structured-light source: Class II blue laser (eye-safe)
Brochure
- For more information, please read the Artec Point brochure.
Artec Point 3D laser scanner delivers highly reliable metrology data you can trust, featuring exceptional accuracy, robust tracking, and specialized modes for intricate geometries.
Metrology in the Palm of Your Hand
Artec’s first target-based 3D laser scanner brings ISO-certified, metrology-grade 3D scanning to your fingertips. The Artec Point efficiently captures complex surfaces, including those with black or reflective finishes, with up to 0.02 mm accuracy for precise quality control and reverse engineering.
Switch between grid, parallel, and single-laser modes to optimize your results, and utilize HD cameras set at a steep angle to capture details in tight spaces. Featuring a lightweight yet durable metal chassis, the Artec Point is well-suited for demanding industrial settings. For capturing intricate objects with high precision and repeatability, the Artec Point excels, providing fast and reliable data wherever you need it.
Scanning Area
up to 700 x 600 mm
Blue Laser
Class II blue laser (eye-safe)
Why Choose the Artec Point?
Metrology-grade accuracy
Incredibly easy to use
Scan in Tight Places
Switch mode for tricky surfaces
Magnify for a closer look
Wide field of view
3 Modes for Different Surfaces
Artec Point gives you the flexibility to scan in three modes. Switch between scanning large objects at pace, capturing intricate details, and digitizing deep holes—with a click of a button.

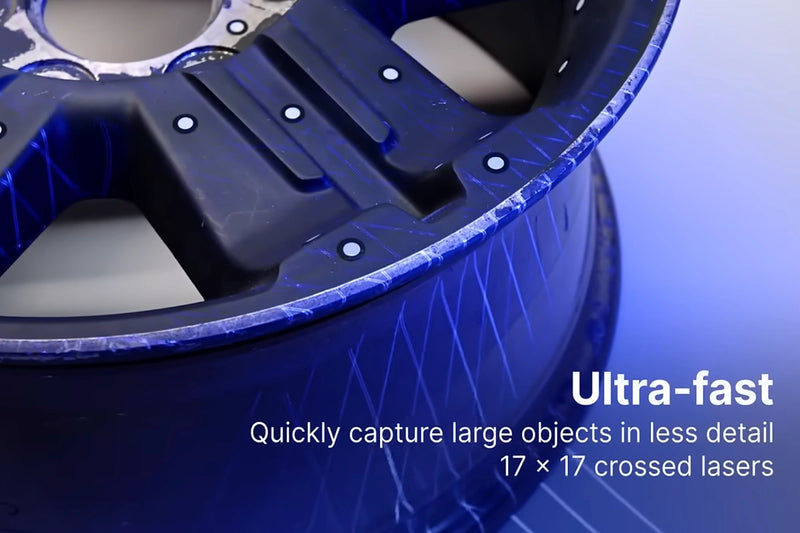

Ultra-fast scanning

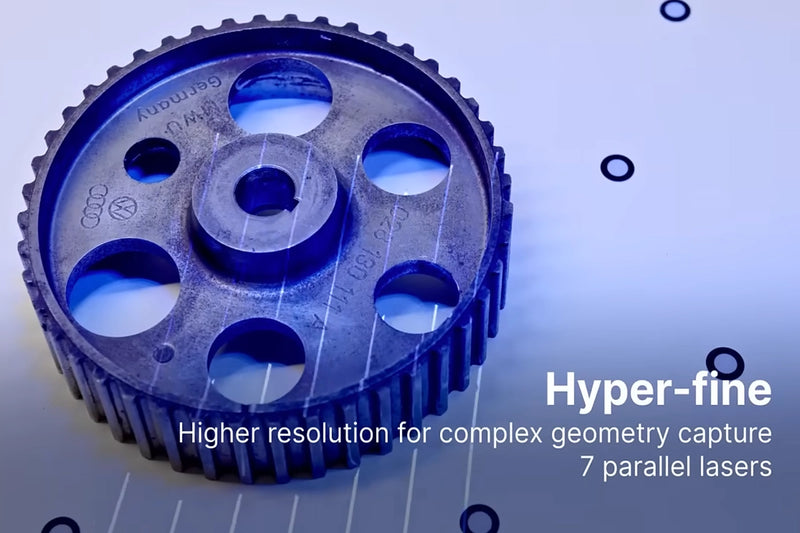

Super fine scanning

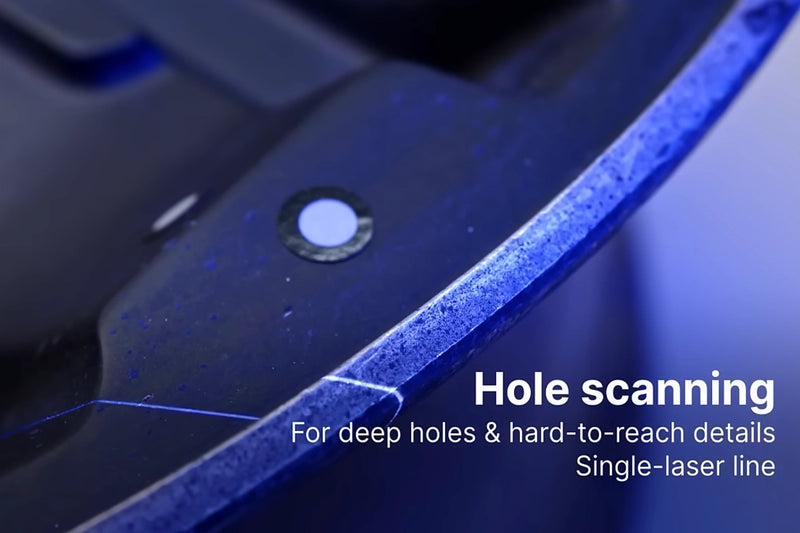

Deep Hole scanning
Scan Samples
Transmission
Cam Gear
Car Rim
With more than two and a half decades of expertise in 3D scanning, we serve various industries including automotive, education, scientific research, medical, arts, heritage preservation, aerospace, military, and manufacturing.
We are proud to be Artec’s Gold-Certified Ambassador, serving clients across the United States.
Is it necessary to use targets with the Artec Point 3D laser scanner?
Yes, Artec Point is a target-based 3D scanner, meaning users need to place targets on the object to achieve optimal results. After calibration, however, the workflow is similar to other Artec 3D scanners—simply capture and process the scan data in Artec Studio.
Why should I choose GoMeasure3D as my technology supplier when buying an Artec 3D scanner?
GoMeasure3D is an Artec Gold Certified Ambassador in the USA. We've been in business for 25+ years. Our team has many years of knowledge and experience using their hardware and software.
When you select us as your technology partner, our goal is to get you 3D solutions that enhance your work while making you more productive. We’re here to listen to your challenges or a new undertaking. We will work with you to implement 3D scanning and related technologies to make work easier. We’re here to help you get the right equipment for the job. You can count on us!
We have all the Artec 3D scanners readily available at our office to provide you with a demo—in our office, at your location, or virtually in real-time on your computer.
What is the listed price?
The listed price on this page is the Manufacturer’s Suggested Retail Price (MSRP). It's best contact us to see if you qualify for any special discounts or promotions. We also offer special pricing for educational institutions. Request a Quote →
