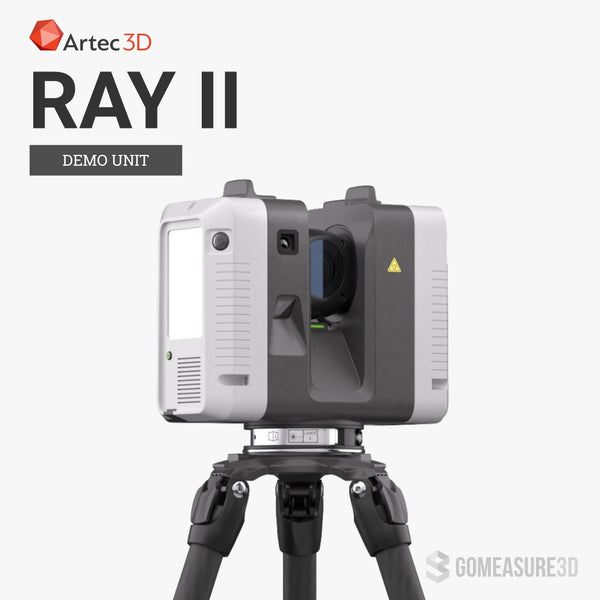

Artec Ray II Long-Range (LIDAR) 3D Scanner (Demo Unit)

Artec

Artec Ray II Long-Range (LIDAR) 3D Scanner (Demo Unit)

Regular price $ 88,000.00

Lightning-Fast Long-Range 3D Scanner With High Accuracy 3D Imaging

User-friendly portable 3D scanner
Built-in touchscreen and intuitive UI for easy 3D scanning
Equipped with automated targetless field registration
Real-time scan alignment
Double-scan feature for the automatic deletion of moving objects
Rain and dust protection (IP54)

For more information on the Artec Ray II, please visit our main website

🗓 Instantly Book a Web Demo With Us

We can give you a personalized tour without ever leaving your desk. Demo time will be confirmed immediately after you submit your request. Book using our calendar

Quantity

Technical Specifications

Type: long-range 3D scanner
Scanning range: 0.5 — 130 m
Speed: Capture a full dome at the highest resolution in 1.7 mins
Resolution: 3 mm at 10 meters
Color: Scan in full color with 36 MP 3-camera system
3D point accuracy @10m: 1.9 mm
3D point accuracy @20m: 2.9 mm
3D point accuracy @40m: 5.3 mm
Angular accuracy: 0.87 mm @10m (or 18”)
Range accuracy: 1.0 mm + 10 ppm
Range noise: 0.4 mm @ 10m - 0.5mm @ 20m

Brochure

Lightning-fast long-range laser 3D scanner for professional captures with Metrology-grade precision

The Artec Ray II laser 3D scanner captures large to massive objects, scenes, or areas quickly and precisely from up to 130 m away. The LIDAR system delivers 3D point accuracy that meets high professional standards and best-in-angular-class accuracy.

Captures Large Objects, Scenes, or Areas

Artec Ray II precisely captures large to massive objects, scenes, or areas such as:

Buildings, Bridges, and Factories to retrofit conveyor line setup
Boats, Ship Propellers, and Airplanes
Large industrial equipment
Wind turbines
Forensic / Crime scenes
Archeology and Mining sites

Lightweight + Portability

Super easy to take anywhere you need: vehicles can be captured in minutes, aircraft, and full-sized buildings in just a few hours.

Remote Scanning

When scanning something large, in an inaccessible location, or at a height you can’t safely be on, control your scanner easily and from a distance with the Artec Remote App.

Real-Time On-Board Registration

Track the scanner’s movement in real-time with feature tracking and advanced algorithms for intuitive 3D-space navigation including Ray II’s Visual Inertial System (VIS), Altimeter, compass, and Global Navigation Satellite System.

Automatic Removal of Moving Objects

Artec Ray II’s smart auto-removal of moving objects that may enter or exit the scene keeps all captured data focused on exactly what you need.

Continuous Battery Supply

Powered by two hot-swappable batteries and another two on standby, the 3D laser scanner Ray II comes ready to scan for a full 8 hours. Need more time? Charge while you scan, and swap without any downtime.

Water and dust protection with IP54 (IEC 60529)

Your 3D scanner is protected and your work is kept safe with the Artec Ray II’s water and dust protection, designed to keep particles or humidity from getting into your device.

Makes Long-Range 3D Scanning a Breeze

The wireless Artec Ray II offers seamless 3D scanning with essential features easily accessed via the touch screen. Simply press a button—no additional computer or device required for the 3D capture. Weighing just 5 kg, including the tripod, the Ray II requires no targets and sets up fully in seconds.

Smart Car

Klemm L25d VIIR LX-MA Airplane With Color Texture

World’s Largest Blast Furnace Gas Engine

Church Façade
